T44-BS11-04
Panel Mount Barrier Terminal Block, 1 Row, 4 Positions, 22 AWG, 14 AWG, 9.5 mm, 15 A

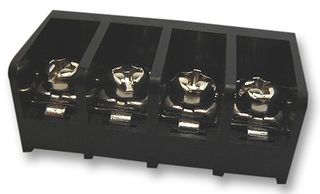

Image is for illustrative purposes only. Please refer to product description.
880 In Stock
Need more?
376 Delivery in 1-3 Business Days(US stock)
504 Delivery in 2-4 Business Days(UK stock)
Order before 9pm
| Quantity | Price |
|---|---|
| 1+ | $0.847 |
| 10+ | $0.847 |
| 25+ | $0.845 |
Price for:Each
Minimum: 1
Multiple: 1
$0.85
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMULTICOMP PRO
Manufacturer Part NoT44-BS11-04
Newark Part No.74M4946
Technical Datasheet
No. of Rows1 Row
No. of Positions4Positions
Wire Size AWG Min22AWG
Wire Size AWG Max14AWG
Pitch Spacing9.5mm
Rated Current15A
Rated Voltage300V
Product Range-
SVHCNo SVHC (23-Jan-2024)
Product Overview
The T44-BS11-04 is a 4-way 15A panel-mount Barrier Terminal Block with vertical termination. It is made up of black PBT insulating body with tin-plated brass terminal and nickel-plated steel screw.
- 12lb-inch Screw torque
- 2000VAC Minimum withstanding insulation voltage
- <gt/>2000MΩ at 500VDC Insulation resistance
- Multicomp Pro products are rated 4.6 out of 5 stars
- 12 month limited warranty *view Terms & Conditions for details
- 96% of customers would recommend to a friend
Technical Specifications
No. of Rows
1 Row
Wire Size AWG Min
22AWG
Pitch Spacing
9.5mm
Rated Voltage
300V
SVHC
No SVHC (23-Jan-2024)
No. of Positions
4Positions
Wire Size AWG Max
14AWG
Rated Current
15A
Product Range
-
Technical Docs (2)
Alternatives for T44-BS11-04
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (23-Jan-2024)
