DB25-PD

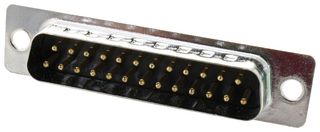

D Sub Connector Housing, 25 Positions, D Sub, DB, DPD Series, Plug, Metal Body
Image is for illustrative purposes only. Please refer to product description.
ManufacturerMULTICOMP
Manufacturer Part NoDB25-PD
Newark Part No.01P1678
Product RangeDPD Series
Technical Datasheet
813 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $2.630 |
| 100+ | $2.060 |
| 250+ | $1.870 |
| 500+ | $1.710 |
| 1000+ | $1.570 |
Price for:Each
Minimum: 1
Multiple: 1
$2.63
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMULTICOMP
Manufacturer Part NoDB25-PD
Newark Part No.01P1678
Product RangeDPD Series
Technical Datasheet
No. of Positions25Positions
Connector TypeD Sub
Connector Shell SizeDB
Product RangeDPD Series
Connector Body MaterialMetal Body
For Use WithDPD Series D-Sub Connectors
SVHCNo SVHC (21-Jan-2025)
Product Overview
The DB25-PD is a 25-position D-sub Standard Plug with gold flash phosphor bronze contacts and a black PBT, 30% glass reinforced. This plug features tin or zinc plated steel shell and nickel plated brass hardware. It is suitable for use with DPD series D-sub contacts.
- 5A Maximum rated current
- 20MΩ Maximum initial Contact resistance
- 5000MΩ Minimum insulator resistance
- 1000VAC for 1 minute Dielectric withstanding voltage
- -65 to +125°C Operating temperature range
- Multicomp products are rated 4.6 out of 5 stars
- 12 month limited warranty *view Terms & Conditions for details
- 96% of customers would recommend to a friend
Applications
Communications & Networking
Technical Specifications
No. of Positions
25Positions
Connector Shell Size
DB
Gender
Plug
For Use With
DPD Series D-Sub Connectors
Connector Type
D Sub
Product Range
DPD Series
Connector Body Material
Metal Body
SVHC
No SVHC (21-Jan-2025)
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
