MC011005

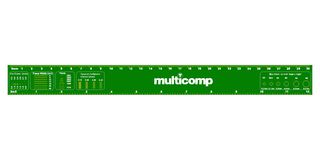

Ruler, PCB, FR-4 Material, Green, White Text, 308.7 mm x 31.3 mm x 1.6 mm
Image is for illustrative purposes only. Please refer to product description.
3 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
Available in quantity shown. To order more than shown inventory, contact sales
Product Information
ManufacturerMULTICOMP
Manufacturer Part NoMC011005
Newark Part No.84AC7916
Technical Datasheet
Length308.7mm
Width31.3mm
Graduations0.1mm
Tool Body MaterialFR4
Product Range-
SVHCNo SVHC (15-Jan-2018)
Alternatives for MC011005
1 Product Found
Product Overview
- Common surface mount IC package layouts
- Common surface mount diode and transistor package layouts
- Ruler should fit perfectly to determine the size of the screw
- Includes a chart to show the maximum current different sized external traces can handle, and shows the corresponding temperature rise
- Can be used to measure the copper trace widths on a PCB
Technical Specifications
Length
308.7mm
Graduations
0.1mm
Product Range
-
Width
31.3mm
Tool Body Material
FR4
SVHC
No SVHC (15-Jan-2018)
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (15-Jan-2018)
