PQU650-12P
AC/DC Open Frame Power Supply (PSU), ITE, 1 Output, 650W @ 300LFM, 450 W, 90V AC to 264V AC

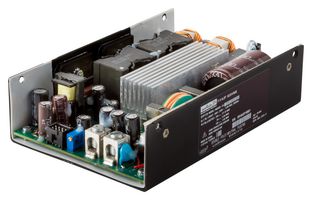

Image is for illustrative purposes only. Please refer to product description.
ManufacturerMURATA POWER SOLUTIONS
Manufacturer Part NoPQU650-12P
Newark Part No.61AK7400
Product RangePQU650 Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 56 week(s)
| Quantity | Price |
|---|---|
| 100+ | $306.400 |
Price for:Each
Minimum: 120
Multiple: 20
$36,768.00
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMURATA POWER SOLUTIONS
Manufacturer Part NoPQU650-12P
Newark Part No.61AK7400
Product RangePQU650 Series
Technical Datasheet
Power Supply ApplicationsITE
No. of Outputs1 Output
Power Rating (Forced Cooling)650W @ 300LFM
Power Rating (Convection Cooling)450W
Input Voltage VAC90V AC to 264V AC
Power Supply Output TypeFixed
Output Voltage - Output 112V
Output Current - Output 154.2A
Output Voltage - Output 2-
Output Current - Output 2-
Output Voltage - Output 3-
Output Current - Output 3-
Output Voltage - Output 4-
Output Current - Output 4-
Product RangePQU650 Series
SVHCNo SVHC (07-Nov-2024)
Product Overview
PQU650-12P is a PQU650 series 650W 4" x 6" AC-DC U-channel power supply converter. The compact form factor offers an impressive 450W of natural convection cooled power at +50°C. Provision of an adjustable main output, plus auxiliary/standby and fan outputs, will enable this technically superior solution to be deployed across multiple market sectors, complemented by safety certification applicable to audio/video/communication and ITE standards. Typical applications are industrial, telecommunications and datacoms, test equipment, ATE, visual signage, broadcast, PoE.
- Voltage (+15%)² adjustment of main V1 output
- 5VAux/standby and 12V fan outputs
- 4" x 6" industry standard footprint, U channel form factor with industry standard mounting footprint
- Choice of screwed or pluggable connector variants
- High efficiency of 95% typical at 50% load
- Very low no load standby power consumption
- True zero load operation of the main (V1) output; no minimum load requirements
- Universal AC input; active PFC; EN61000-3-2 class A
- Parallel/redundant capable; droop current share as standard feature
- IEC62368-1 certified
Technical Specifications
Power Supply Applications
ITE
Power Rating (Forced Cooling)
650W @ 300LFM
Input Voltage VAC
90V AC to 264V AC
Output Voltage - Output 1
12V
Output Voltage - Output 2
-
Output Voltage - Output 3
-
Output Voltage - Output 4
-
Product Range
PQU650 Series
No. of Outputs
1 Output
Power Rating (Convection Cooling)
450W
Power Supply Output Type
Fixed
Output Current - Output 1
54.2A
Output Current - Output 2
-
Output Current - Output 3
-
Output Current - Output 4
-
SVHC
No SVHC (07-Nov-2024)
Technical Docs (2)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (07-Nov-2024)
