CBT50J33R
Through Hole Resistor, 33 ohm, CBT Series, 500 mW, ± 5%, Axial Leaded, 350 V

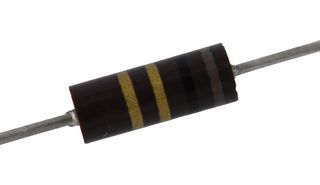

Image is for illustrative purposes only. Please refer to product description.
ManufacturerNEOHM - TE CONNECTIVITY
Manufacturer Part NoCBT50J33R
Newark Part No.22R5585
Product RangeCBT Series
Also Known As5-1625876-3, CBT 1/2 5% 33R
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 29 week(s)
Product Information
ManufacturerNEOHM - TE CONNECTIVITY
Manufacturer Part NoCBT50J33R
Newark Part No.22R5585
Product RangeCBT Series
Also Known As5-1625876-3, CBT 1/2 5% 33R
Technical Datasheet
Resistance33ohm
Product RangeCBT Series
Resistance Tolerance± 5%
Power Rating500mW
Resistor Case / PackageAxial Leaded
Temperature Coefficient-600ppm/°C to +200ppm/°C
Voltage Rating350V
Resistor TechnologyCarbon Composition
Resistor TypePulse Withstanding
Product Diameter3.6mm
Product Length9.5mm
Product Width-
Operating Temperature Min-55°C
Operating Temperature Max125°C
Qualification-
SVHCNo SVHC (10-Jun-2022)
Technical Specifications
Resistance
33ohm
Resistance Tolerance
± 5%
Resistor Case / Package
Axial Leaded
Voltage Rating
350V
Resistor Type
Pulse Withstanding
Product Length
9.5mm
Operating Temperature Min
-55°C
Qualification
-
Product Range
CBT Series
Power Rating
500mW
Temperature Coefficient
-600ppm/°C to +200ppm/°C
Resistor Technology
Carbon Composition
Product Diameter
3.6mm
Product Width
-
Operating Temperature Max
125°C
SVHC
No SVHC (10-Jun-2022)
Technical Docs (3)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (10-Jun-2022)
