IDP-1

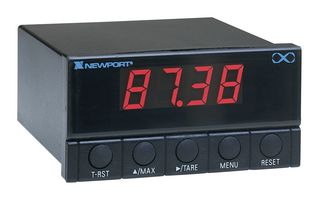

Process Meter, INFINITY® D Series, 4 Digits, 207 Vac to 253 Vac, Red
Image is for illustrative purposes only. Please refer to product description.
No Longer Available
Product Information
ManufacturerNEWPORT ELECTRONICS
Manufacturer Part NoIDP-1
Newark Part No.15N3818
Technical Datasheet
No. of Digits / Alpha4
Meter FunctionDC Current / DC Voltage
Digit Height14.2mm
Panel Cutout Height45mm
Panel Cutout Width92mm
Supply Voltage Min207VAC
Supply Voltage Max253VAC
Operating Temperature Min0°C
Operating Temperature Max50°C
Product Range-
SVHCTo Be Advised
Product Overview
The IDP-1 is a 4-digit red LED Process Meter offers removable screw terminals for easy connections. It has user-selectable inputs of 4 to 20mA and 0 to 5V 1/8 DIN case 4-inch deep.
Applications
Industrial, Metering, Test & Measurement
Technical Specifications
No. of Digits / Alpha
4
Meter Range
4mA to 20mA / 0V to 5V / 1V to 5V / 0V to 10V
Panel Cutout Height
45mm
Supply Voltage Min
207VAC
Operating Temperature Min
0°C
Product Range
-
Meter Function
DC Current / DC Voltage
Digit Height
14.2mm
Panel Cutout Width
92mm
Supply Voltage Max
253VAC
Operating Temperature Max
50°C
SVHC
To Be Advised
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:No
RoHS Phthalates Compliant:To be advised
SVHC:To Be Advised
