PCMF3HDMI2SZ
COMMON-MODE EMI FILTER, TRIPLE, WLCSP15

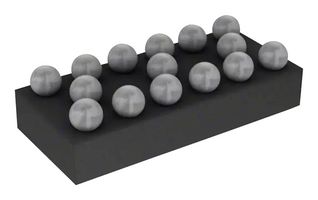

Image is for illustrative purposes only. Please refer to product description.
ManufacturerNEXPERIA
Manufacturer Part NoPCMF3HDMI2SZ
Newark Part No.97Y9466
Product RangePCMFxHDMI2S Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 15 week(s)
| Quantity | Price |
|---|---|
| 1+ | $1.290 |
| 10+ | $0.943 |
| 25+ | $0.885 |
| 50+ | $0.832 |
| 100+ | $0.772 |
| 250+ | $0.727 |
| 500+ | $0.687 |
| 1000+ | $0.669 |
Price for:Each (Supplied on Cut Tape)
Minimum: 1
Multiple: 1
$1.29
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerNEXPERIA
Manufacturer Part NoPCMF3HDMI2SZ
Newark Part No.97Y9466
Product RangePCMFxHDMI2S Series
Technical Datasheet
EMI Filter TypeCommon Mode Filter with ESD Protection
No. of Data Lines6 Data Lines
Filter CircuitCommon-Mode
Filter Case StyleWLCSP
No. of Pins15Pins
Product RangePCMFxHDMI2S Series
SVHCNo SVHC (21-Jan-2025)
Technical Specifications
EMI Filter Type
Common Mode Filter with ESD Protection
Filter Circuit
Common-Mode
No. of Pins
15Pins
SVHC
No SVHC (21-Jan-2025)
No. of Data Lines
6 Data Lines
Filter Case Style
WLCSP
Product Range
PCMFxHDMI2S Series
Technical Docs (1)
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
