410-135

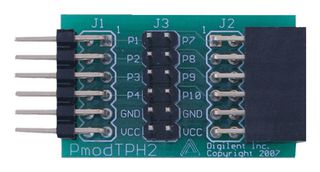

Development Board, 12-Pin Test Point Header, Pmod TPH2, Digilent System Boards
Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 10 week(s)
| Quantity | Price |
|---|---|
| 1+ | $15.000 |
Price for:Each
Minimum: 1
Multiple: 1
$15.00
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerNI / EMERSON
Manufacturer Part No410-135
Newark Part No.47AM1258
Technical Datasheet
Accessory TypePmod TPH2: 12-Pin Test Point Header
For Use WithDigilent FPGA Development Boards
Product Range-
SVHCTo Be Advised
Product Overview
410-135 is a Pmod TPH2 module that offers 12 external pin headers so that users can easily test the GPIO signals passing through each of the pins.
- 12 external test point headers
- Easily access and test signals passing through
- Small PCB size for flexible designs 1.3" × 0.8" (3.3cm × 2cm)
- 12-pin Pmod connector with GPIO interface
- Follows Digilent Pmod interface specification Type 1
Contents
Pmod TPH2, Custom antistatic Pmod packaging.
Technical Specifications
Accessory Type
Pmod TPH2: 12-Pin Test Point Header
Product Range
-
For Use With
Digilent FPGA Development Boards
SVHC
To Be Advised
Technical Docs (1)
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:To be advised
RoHS Phthalates Compliant:To be advised
SVHC:To Be Advised
