779566-01
Terminal Block, SMB-2163, Single-Ended PXI Digital Waveform Instrument

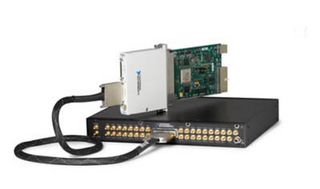

Image is for illustrative purposes only. Please refer to product description.
ManufacturerNI / EMERSON
Manufacturer Part No779566-01
Newark Part No.14AJ4895
Product RangeSMB-2163
Technical Datasheet
Unable to Retrieve Availability Information
Product Information
ManufacturerNI / EMERSON
Manufacturer Part No779566-01
Newark Part No.14AJ4895
Product RangeSMB-2163
Technical Datasheet
Accessory TypeTerminal Block
For Use WithNI Single-Ended PXI Digital Waveform Instrument
Product RangeSMB-2163
SVHCNo SVHC (08-Jul-2021)
Product Overview
The SMB-2163 helps you connect to compatible single-ended PXI Digital Waveform Instrument for testing and debugging. This terminal block features 32 single-ended digital I/O channels and 5 single-ended control I/O channels. The SMB-2163 also features one 68-pin DDC connector, 37 SMB jack connectors, and one banana-style connector.
Technical Specifications
Accessory Type
Terminal Block
Product Range
SMB-2163
For Use With
NI Single-Ended PXI Digital Waveform Instrument
SVHC
No SVHC (08-Jul-2021)
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (08-Jul-2021)
