CKL12ATW01-001
Keylock Switch, On-None-On, SPDT, CK Series, 2 Position, Solder, 3 A

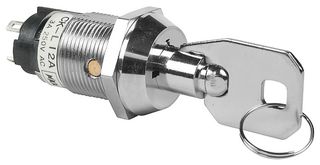

Image is for illustrative purposes only. Please refer to product description.
ManufacturerNKK SWITCHES
Manufacturer Part NoCKL12ATW01-001
Newark Part No.11X2896
Product RangeCK Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 10 week(s)
| Quantity | Price |
|---|---|
| 1+ | $48.350 |
| 5+ | $46.080 |
| 10+ | $42.960 |
| 25+ | $39.480 |
| 50+ | $34.600 |
| 100+ | $32.520 |
| 250+ | $29.920 |
Price for:Each
Minimum: 1
Multiple: 1
$48.35
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerNKK SWITCHES
Manufacturer Part NoCKL12ATW01-001
Newark Part No.11X2896
Product RangeCK Series
Technical Datasheet
Switch OperationOn-None-On
Contact ConfigurationSPDT
Product RangeCK Series
No. of Switch Positions2 Position
Switch TerminalsSolder
Contact Current Max3A
Contact Voltage AC Nom250V
Contact Voltage DC Nom-
Angle of Throw90°
SVHCNo SVHC (15-Jan-2018)
Product Overview
The CKL12ATW01-001 is a single-pole double-throw (SPDT) high security Keylock Switch with chrome-plated zinc alloy housing and nickel-plated brass tubular key. This switch features solder lug terminals and break-before-make contacts. The push and lock mechanism allows contactor to drop and slide over stationary contacts. Epoxy sealed terminals prevents the entry of flux and other contaminants. This key operated switch comes with copper contactor and LCP (liquid crystal polymer) base. The vertically rotating switching mechanism combines with self-cleaning sliding contacts for high reliability and long operating life.
- Interior construction provides seal for contact area
- High dielectric strength of 1500V between contacts and case
- 20mΩ Maximum contact resistance
- 1000MΩ at 500VDC Minimum insulation resistance
- 30000 cycles Minimum mechanical life
- 10000 cycles Minimum electrical life
- -25 to 70°C Operating temperature range
Applications
Industrial
Technical Specifications
Switch Operation
On-None-On
Product Range
CK Series
Switch Terminals
Solder
Contact Voltage AC Nom
250V
Angle of Throw
90°
Contact Configuration
SPDT
No. of Switch Positions
2 Position
Contact Current Max
3A
Contact Voltage DC Nom
-
SVHC
No SVHC (15-Jan-2018)
