CKL12BFW01-001
Keylock Switch, On-None-On, SPDT, CK Series, 2 Position, Solder, 3 A

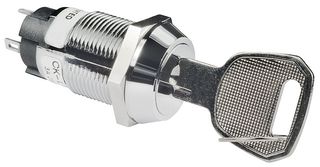

Image is for illustrative purposes only. Please refer to product description.
ManufacturerNKK SWITCHES
Manufacturer Part NoCKL12BFW01-001
Newark Part No.11X2947
Product RangeCK Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 10 week(s)
| Quantity | Price |
|---|---|
| 1+ | $48.350 |
| 5+ | $46.080 |
| 10+ | $42.960 |
| 25+ | $39.480 |
| 50+ | $34.600 |
| 100+ | $32.520 |
| 250+ | $29.920 |
Price for:Each
Minimum: 1
Multiple: 1
$48.35
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerNKK SWITCHES
Manufacturer Part NoCKL12BFW01-001
Newark Part No.11X2947
Product RangeCK Series
Technical Datasheet
Switch OperationOn-None-On
Contact ConfigurationSPDT
Product RangeCK Series
No. of Switch Positions2 Position
Switch TerminalsSolder
Contact Current Max3A
Contact Voltage AC Nom250V
Contact Voltage DC Nom-
Angle of Throw90°
SVHCNo SVHC (15-Jan-2018)
Product Overview
The CKL12BFW01-001 is a high security Keylock Switch with chrome-plated zinc alloy housing and liquid crystal polymer base. It has silver-plated copper break-before-make contacts. It features flat key which is reversible for easier setting.
- 20mΩ Maximum contact resistance
- 1000MΩ Minimum insulation resistance
- 30000 cycles Minimum mechanical life
Applications
Industrial
Technical Specifications
Switch Operation
On-None-On
Product Range
CK Series
Switch Terminals
Solder
Contact Voltage AC Nom
250V
Angle of Throw
90°
Contact Configuration
SPDT
No. of Switch Positions
2 Position
Contact Current Max
3A
Contact Voltage DC Nom
-
SVHC
No SVHC (15-Jan-2018)
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (15-Jan-2018)
