FB15ANEP2-HA
Pushbutton Switch, FB Series, 5.3 mm, SPST-NO, Off-(On), Round, Black

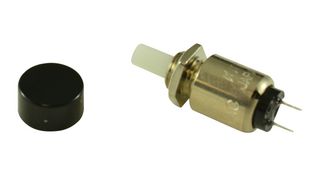

Image is for illustrative purposes only. Please refer to product description.
ManufacturerNKK SWITCHES
Manufacturer Part NoFB15ANEP2-HA
Newark Part No.09X9205
Product RangeFB Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 13 week(s)
| Quantity | Price |
|---|---|
| 1+ | $14.210 |
| 10+ | $13.650 |
| 25+ | $13.240 |
| 50+ | $12.260 |
| 100+ | $11.210 |
| 250+ | $9.860 |
| 500+ | $8.840 |
| 1000+ | $8.330 |
Price for:Each
Minimum: 1
Multiple: 1
$14.21
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerNKK SWITCHES
Manufacturer Part NoFB15ANEP2-HA
Newark Part No.09X9205
Product RangeFB Series
Technical Datasheet
Pushbutton Switch TypeStandard
Product RangeFB Series
Contact Voltage AC Nom125V
Contact ConfigurationSPST-NO
Panel Cutout Diameter5.3mm
Contact Current Max500mA
Switch OperationOff-(On)
Pushbutton Actuator StyleRound
Actuator / Cap ColourBlack
Contact Current AC Max500mA
Contact Voltage VAC125V
Switch MountingPanel Mount
Switch TerminalsSolder Turret
Illumination ColorNon Illuminated
Panel Cutout (H x W)-
SVHCNo SVHC (15-Jan-2018)
Product Overview
The FB15ANEP2-HA is a 0.5A momentary SPST Pushbutton Switch with black cap. It has epoxy sealed PC/turret terminals. The internal anti-jamming feature to protect the contacts from damage due to excessive force on the plunger.
- Self-cleaning contacts make FB models highly
- Rugged one-piece bushing
- Reliability of construction with an internal guide to maintain contact alignment
- Epoxy sealed terminals
- -10 to 70°C Operating temperature range
Applications
Industrial
Technical Specifications
Pushbutton Switch Type
Standard
Contact Voltage AC Nom
125V
Panel Cutout Diameter
5.3mm
Switch Operation
Off-(On)
Actuator / Cap Colour
Black
Contact Voltage VAC
125V
Switch Terminals
Solder Turret
Panel Cutout (H x W)
-
Product Range
FB Series
Contact Configuration
SPST-NO
Contact Current Max
500mA
Pushbutton Actuator Style
Round
Contact Current AC Max
500mA
Switch Mounting
Panel Mount
Illumination Color
Non Illuminated
SVHC
No SVHC (15-Jan-2018)
Technical Docs (2)
Associated Products
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (15-Jan-2018)
