RP125X2.000-DAD

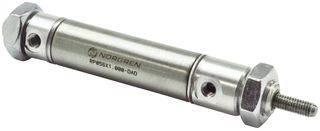

Cylinder Actuator, Roundline Plus, Double Acting Double End Mount, 1-1/4" Bore, 2" Stroke, 250 psi
Available to Order
Manufacturer Standard Lead Time: 4 week(s)
Product Information
ManufacturerNORGREN
Manufacturer Part NoRP125X2.000-DAD
Newark Part No.67R3310
Product RangeRP Series
Technical Datasheet
Cylinder / Drive TypeRound Cylinder with Piston Rod
Mode of OperationDouble Acting Double End Mount
Piston Diameter11.113mm
Pneumatic Connection-
Operating Pressure Max17.2bar
Stroke Length50.8mm
Standards-
Product RangeRP Series
SVHCTo Be Advised
Technical Specifications
Cylinder / Drive Type
Round Cylinder with Piston Rod
Piston Diameter
11.113mm
Operating Pressure Max
17.2bar
Standards
-
SVHC
To Be Advised
Mode of Operation
Double Acting Double End Mount
Pneumatic Connection
-
Stroke Length
50.8mm
Product Range
RP Series
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:To Be Advised
