RTP3034

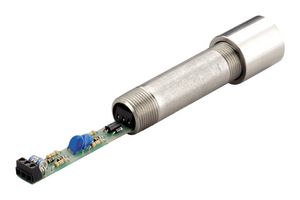

Remote Transmitter Protector, 145 mA, 21 VAC/30 VDC, IP55
Image is for illustrative purposes only. Please refer to product description.
3 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $378.970 |
| 10+ | $351.910 |
| 25+ | $339.410 |
| 50+ | $326.920 |
| 100+ | $312.340 |
Price for:Each
Minimum: 1
Multiple: 1
$378.97
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerNVENT ERICO
Manufacturer Part NoRTP3034
Newark Part No.31AK7969
Technical Datasheet
For Use WithPowered Equipments
Accessory TypeRemote Transmitter Protector
Product Range-
SVHCTo Be Advised
Product Overview
RTP3034 is a remote transmitter protector. It features three-stage protection and fine over-voltage protection helps ensure the lowest residual surge voltage reaches sensitive equipment. Its flexible installation allows the enclosure to be installed “dead-ended", “T" configured, or in-line. It is optimized for the protection of 2-wire industrial 4-20mA loops and is suitable for exposed locations. It is design to meet ANSI®/IEEE® C62.41.2-2002 Cat A, Cat B, Cat C.
- Supports line currents up to 145mA and protects 24VDC powered equipment
- 21VAC, 30VDC nominal system voltage, 23VAC, 33VDC max continuous operating voltage
- 145mA rated load current
- Gas discharge tube, metal oxide varistor, silicon avalanche diode technology
- 14ohm loop resistance, common, differential protection mode
- IP55 enclosure rating, stainless steel enclosure material
- 3/4" NPT thread size, 5" height, 1.380" diameter
- Temperature range from -40 to 149°F
Technical Specifications
For Use With
Powered Equipments
Product Range
-
Accessory Type
Remote Transmitter Protector
SVHC
To Be Advised
