Q1286PCD
Plastic Enclosure, IP67, NEMA 13, Junction Box, Polycarbonate, 119.9 mm, 80 mm, 55 mm, IP67

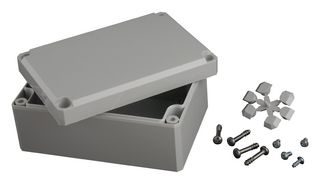

Image is for illustrative purposes only. Please refer to product description.
ManufacturerNVENT HOFFMAN
Manufacturer Part NoQ1286PCD
Newark Part No.91F2265
Product RangeQLINE Series
Technical Datasheet
Available to Order
Delivery estimated post order confirmations.You will be charged on despatch.
| Quantity | Price |
|---|---|
| 1+ | $117.890 |
| 5+ | $111.440 |
| 10+ | $101.140 |
| 20+ | $91.480 |
Price for:Each
Minimum: 1
Multiple: 1
$117.89
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerNVENT HOFFMAN
Manufacturer Part NoQ1286PCD
Newark Part No.91F2265
Product RangeQLINE Series
Technical Datasheet
Enclosure TypeJunction Box
Enclosure MaterialPolycarbonate
External Height - Metric119.9mm
External Width - Metric80mm
External Depth - Metric55mm
IP RatingIP67
Body ColorGray
NEMA RatingNEMA 4, 4X, 6, 12, 13
External Height - Imperial4.7"
External Width - Imperial3.15"
External Depth - Imperial2.16"
Product RangeQLINE Series
SVHCNo SVHC (15-Jan-2019)
Product Overview
The Q1286PCD is a light-gray (RAL 7035) QLINE™ D type-4X Enclosure made of polycarbonate. The model 13779 QLINE D polycarbonate enclosure has contoured bodies with flush cover screws for an attractive, contemporary appearance. Tough as well as stylish, it is functional in corrosive environments and can withstand occasional submersion. Cover screws protected by removable caps that are aesthetic and provide tamper resistance.
- Opaque cover is impact-resistant polycarbonate for PCD series
- Polycarbonate material is easily punched, drilled, filed or sawed
- Straight side walls permit ganging of multiple enclosures
- Cross-point captivated cover screws are stainless steel
- Mounting holes molded directly adjacent to cover screws
- Panel mounting feature on both body and cover
- Seamless foam-in-place gasket assures water-tight and dust-tight seal
- Screws provided for mounting optional panel
- Molded internal pads for mounting optional panels, rails and other components
Applications
Industrial
Technical Specifications
Enclosure Type
Junction Box
External Height - Metric
119.9mm
External Depth - Metric
55mm
Body Color
Gray
External Height - Imperial
4.7"
External Depth - Imperial
2.16"
SVHC
No SVHC (15-Jan-2019)
Enclosure Material
Polycarbonate
External Width - Metric
80mm
IP Rating
IP67
NEMA Rating
NEMA 4, 4X, 6, 12, 13
External Width - Imperial
3.15"
Product Range
QLINE Series
Technical Docs (1)
Associated Products
4 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (15-Jan-2019)
