KITMPXV5004DPEVB
Evaluation Module, Sensing, Pressure Sensor, Easily Evaluation Sensor Functionality, Plug & Play
- Manufacturer:
- NXP NXP
- Manufacturer Part No:
- KITMPXV5004DPEVB
- Newark Part No.:
- 26R2785
- Technical Datasheet:
- KITMPXV5004DPEVB Datasheet
Product Overview

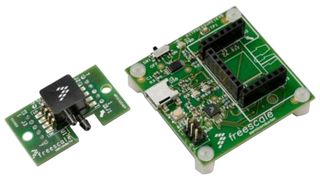

The KITMPXV5004DPEVB is a pressure daughter board, used with the KITPRESSURE1EVB to allow evaluation of the MPXV5004DP pressure sensor. The MPxx5004 series piezoresistive transducer is a state of the art monolithic silicon pressure sensor designed for a wide range of applications, but particularly those employing a microcontroller or microprocessor with A/D inputs. This sensor combines a highly sensitive implanted strain gauge with advanced micromachining techniques, thin film metallization, and bipolar processing to provide an accurate, high level analog output signal that is proportional to the applied pressure.
- Easily evaluate and demonstrate sensor functionality
- Unified architecture with the same GUI software
- Plug and play
- Flexible with a variety of boards that fit together
- Can quickly demonstrate all sensor types
Applications
Industrial, Test & Measurement, Medical, Sensing & Instrumentation
Contents
KITMPXV5004 daughter board, MPXV5004DP Dual Port Package, High temperature silicon rubber soft tubing, Quick Start Guide.
Product Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- Sensing - Pressure
- :
- NXP
- :
- MPXV5004DP
- :
- Pressure Sensor
- :
- Pressure Sensor Board, MPXV5004DP Dual Port Package, Silicon Rubber Soft Tubing, Quick Start Guide
- :
- -
