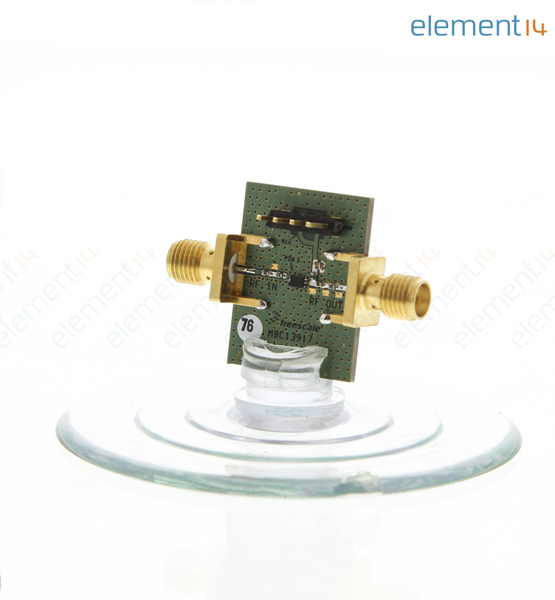

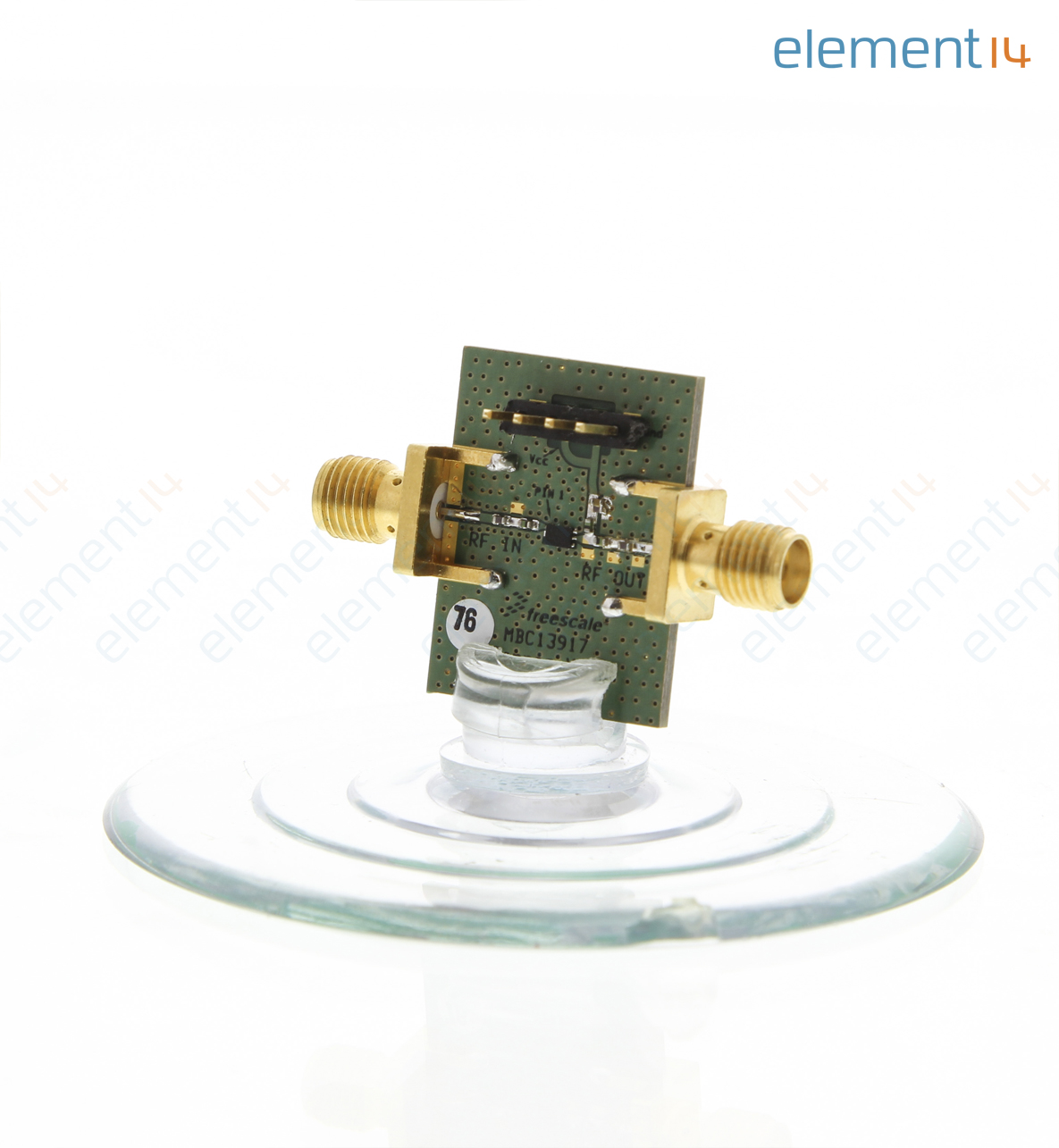

MC13917-1900EVK

Evaluation Board, General Purpose SiGe:C RF Cascode Low-Noise Amplifier

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
NXP NXP
Manufacturer Part No:
MC13917-1900EVK
Newark Part No.:
47T7645
Technical Datasheet:
MC13917-1900EVK   Datasheet
See all Technical Docs

Product Overview

The MC13917-1900EVK features the MBC13917, which is a cost-effective, high isolation amplifier fabricated with an advanced RF BiCMOS process using the SiGe:C module. This device is designed for a wide range of general purpose RF applications, yet has excellent high frequency gain and noise figure. On-chip bias circuitry sets the bias point while matching is accomplished off-chip, affording the maximum in application flexibility.
  • 4.7 mA typical bias current at Vcc = 2.7V
  • 2.1 to 3.3V supply
  • Industry standard MLPD-6 leadless package
  • NFmin (device level) = 0.95dB at 900MHz
  • 6.5dBm typical output power at -10dBm Pin at 900MHz, Vcc = 2.7V
  • 46dB typical reverse isolation (device level) at 434MHz, Vcc = 2.7V
  • 4.7mA typical bias current at Vcc = 2.7V
  • Industry standard MLPD 6 leadless package
  • 2.1V to 3.3V supply

Applications

Security, Industrial, Consumer Electronics, Security

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
NXP

:
MBC13917

:
Amplifier

:
Noise Amplifier

:
Evaluation Board MBC13917

:
-
