OM11048,598

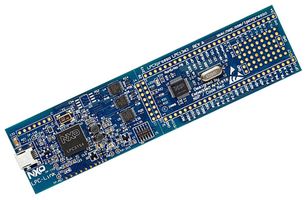

OM11048,598 is a LPCXpresso™ board for LPC1343 ARM Cortex-M3 based microcontroller. LPCXpresso™ is a new, low-cost development platform available from NXP® supporting NXP's Arm-based microcontrollers. The platform is comprised of a simplified Eclipse based IDE and low cost target board which include an attached JTAG debugger. Populated with the LPC1343 to demonstrate its features, the LPCXpresso LPC1343 combines the robust USB for mass storage class and human interface device (HID) of the LPC1343 and the low price point of the LPCXpresso. The LPCXpresso target board can connect to expansion board to provide a variety of interfaces and I/O devices. On-board JTAG debugger provides high speed USB to JTAG/SWD interface to the IDE, and it can be connected to other debug targets such as a customer prototype. The LPC-Link is equipped with a 10 pin JTAG header enabling seamless connection to a target via USB.

• Eclipse based IDE using very low cost target boards
• Target board comes with an integrated JTAG debugger, no need for a separate debug probe
• Easy upgrade options to full blown suites (from code red) and hardware kits (from Embedded Artists)
• End to end solution for creating applications all the way from evaluation through to production
• Available with advanced peripherals like Ethernet, USB host/OTG/device, CAN, I2S, Fast-mode plus
• 10bit ADC with input multiplexing among 8 pins
• High-current output driver (20 mA) on one pin
• Integrated oscillator with an operating range of 1MHz to 25MHz
• Serial wire debug and serial wire trace port
• Unique device serial number for identification

Contents

Board, Quick start guide.
