Evaluation Board, DMX, Lighting, CorteX-M0, LPC1100XL MCU, DMX512/RDM

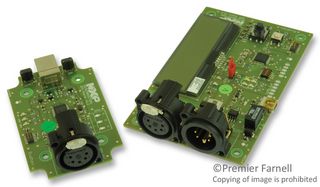

Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 10 week(s)
Product Information
ManufacturerNXP
Manufacturer Part NoOM13043,598
Newark Part No.46W5460
Technical Datasheet
Silicon ManufacturerNXP
No. of Bits32bit
Silicon Family NameLPC11xx
Core ArchitectureARM
Core Sub-ArchitectureCortex-M0
Silicon Core NumberLPC11xx
Kit Contents2x Boards
Product Range-
SVHCNo SVHC (27-Jun-2024)
Product Overview
OM13043,598 is a reference design based on DMX512 with remote device management. It provides a basic set of commands that can be used as a starting point to develop next generation DMX512 platforms.
- Reduced system complexity with high performance MCUs
- High efficiency power conversion
- Cost optimized
- UART & 16bit timer/counters of LPC111x MCU are main hardware blocks
- USB and UART of the LPC11U1x MCU are the main hardware blocks
- LPC1100XL MCU offers performance needed to integrate DMX message coding/decoding & PWM generation
- LED dimming using the PWM input of UBA3070 DC to DC LED driver with up to 98% efficiency
- SSL4101 provides mains isolation for both the RGB LED power stage and the DMX wires
Contents
Two boards.
