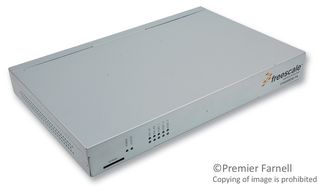

P1024RDB-PA

The P1024RDB-PA is a reference design board for P1024 communications processors. The P1024 communications processor offers extensive integration and extreme power for a wide variety of applications. Based on 45nm technology for low power implementation, the P1024 processor provide dual core solutions for the 400MHz to 667MHz performance range, along with advanced security and a rich set of interfaces. This cost effective, highly integrated board is based on the QorIQ P1024 processor and incorporates a broad array of modern connectivity options to help to quickly design, test and launch application. The P1024RDB-PA is a feature rich platform that supports a wide range of different application needs. It features 1GB unbuffered DDR3 SDRAM, 16MB NOR flash and 32MB NAND flash, where the platform can boot from either NOR or NAND flash memory.

• PCI express interconnects
• Ethernet
• USB 2.0 port
• Open frame power supply connector
• JTAG/COP for debugging
• Dual I2C interface
• Mini AB connectors on I/O panel
• Dual SLIC for FXS/FXO interfaces
• IEEE 1588 signals for test and measurement
• Six layer PCB routing (four layer signals, two layer power and ground)
• Boot-from-flash capability and an integrated security engine
• Open frame power supply connector
• JTAG/COP for debugging

Applications

Communications & Networking, Defence, Military & Aerospace, Industrial, Wireless

Contents

Hardware, Software, Documentation.
