PCAL6534EV-ARD

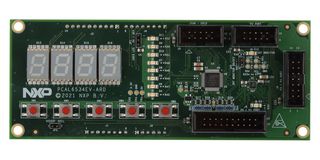

PCAL6534EV-ARD is a 34-bit GPIO Arduino® shield that allows easy integration with Arduino EVKs to evaluate 34-bit general-purpose I/O expander features for interfacing with sensors, push buttons, keypads, and more. A graphical interface allows the user to easily explore the different functions of the GPIO expander to create an evaluation system. The PCAL6534EV-ARD evaluation board is a daughter card equipped with an Arduino port, designated for easy test and design of PCAL6534 IC, 34-bit port expander, controlled through FM+ I2C 2-wire bus, with RESET. The board is fully compliant with IMXRT1050 EVK, LPCXpresso55S69 (LPC55S69-EVK) and i.MX 8M Mini LPDDR4 EVK (8MMINILPD4-EVK, 8MMINID4-EVK), including GUI software control. The board can be attached to any device equipped with an Arduino port.

• I/O connectors for external access to IC input-output pins
• 5 user switches connected to I/O pins of the IC, 8 user LEDs connected to I/O pins of the IC
• On-board LED display controlled from the I/O pins of the IC
• Equipped with Arduino Uno R3 port for direct connection with Arduino devices
• Fully compliant with IMXRT1050 EVK board, including GUI (Windows 10)
• Fully compliant with LPCXpresso55S69 dev. board, including GUI (Windows 10)
• Compliant with i.MX Mini LPDDR4 EVK board, including GUI (Windows 10)
• Supports 34-bit GPIO, open-drain active LOW interrupt output (INT)
• 1MHz Fast-mode Plus I2C-bus, RESET pin interface
• Supply voltage: VDD (p) 1.65V to 5.5V, VDD (I2C-bus) 0.8V to 3.6V, low standby current (2.0uA/3.0uA)

Contents

Assembled and tested evaluation board in an antistatic bag, Quick start guide.
