TSSEVB
Touch Sensing Software Evaluation Board

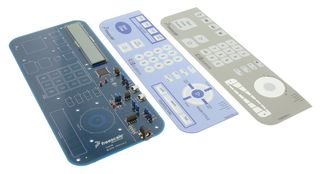

Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 12 week(s)
| Quantity | Price |
|---|---|
| 1+ | $177.980 |
Price for:Each
Minimum: 1
Multiple: 1
$177.98
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerNXP
Manufacturer Part NoTSSEVB
Newark Part No.57R7221
Technical Datasheet
Application Sub TypeTouch Sensor
Kit ContentsTSSEVB Board, USB Cable, Getting Started DVD, Quick Started Guide
SVHCNo SVHC (27-Jun-2024)
Product Overview
The Touch-Sensing Software evaluation board contains everything the user needs to get started with a touch-sensing application. The touch-sensing software library enables capacitive sensing for the entire NXP S08 MCU portfolio, providing touch sense decoding structures such as keypad, rotary and slider.
- Demo applications included
- Rotary, Slider, Keypad, Multiplexed electrodes and Matrix
- Backlight LED on electrodes
- LCD glass and buzzer
- S08LG32 MCU
- Serial to USB converter
- BDM on board
- Powered over USB or external power supply
- GUI communication
- Different thickness overlays
Applications
Embedded Design & Development
Contents
TSSEVB Board, USB Cable
Technical Specifications
Application Sub Type
Touch Sensor
SVHC
No SVHC (27-Jun-2024)
Kit Contents
TSSEVB Board, USB Cable, Getting Started DVD, Quick Started Guide
Technical Docs (2)
Associated Products
2 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (27-Jun-2024)
