TWR-S12G240-KIT

TWR-S12G240-KIT is an ultra reliable 16bit tower system module. The TWR-S12G240 is a demonstration board for the NXP® MC9S12G240 automotive 16-bit MCUs. An integrated open-source BDM, software tools, and examples provided with the development board make application development and debug quick and easy. The TWR-S12G240 operates as a standalone debug tool and can also be combined and used as part of the modular Tower® System development platform.

• S12G: ultra-reliable S12G general purpose automotive and industrial microcontrollers
• All MCU signals are available on one or both edge connectors
• 240KB flash, 4096B EEPROM and 11298B RAM
• SCI, SPI, MSCAN, 1 ea. high-speed CAN physical layer transceiver
• 1 ea, enhanced LIN physical layer transceiver, RS-232 serial data physical layer transceiver
• 5 2x8, 0.1" CTR, to access MCU pin signals
• Power input from OSBDM, tower system or external 12V barrel connector
• 25MHz bus frequency
• Internal oscillator
• Integrated open source BDM (OSBDM)

Contents

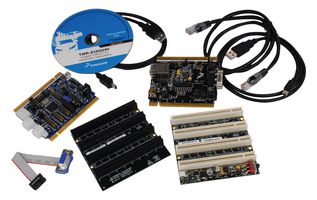

TWR-S12G240 board with a MC9S12G240 16-bit MCU, DVD with IDE software, training materials and collateral, USB cable, DB9 to IDC 2X5 socket header, NXP warranty card, TWR-ELEV (tower system elevator module), TWR-PROTO (Prototyping Module with perfboard area).
