TC-K-1/8NPT-U-72
Thermocouple, K, 0 °C, 650 °C, Stainless Steel, 72 ", 1.83 m
Image is for illustrative purposes only. Please refer to product description.
ManufacturerOMEGA
Manufacturer Part NoTC-K-1/8NPT-U-72
Newark Part No.34AC6489
Product RangeTC-K-NPT Series
Technical Datasheet
38 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $143.810 |
Price for:Each
Minimum: 1
Multiple: 1
$143.81
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerOMEGA
Manufacturer Part NoTC-K-1/8NPT-U-72
Newark Part No.34AC6489
Product RangeTC-K-NPT Series
Technical Datasheet
Thermocouple TypeK
Measured Temperature Min0°C
Measured Temperature Max650°C
Sensor Body MaterialStainless Steel
Lead Length - Imperial72"
Lead Length - Metric1.83m
Probe Length - Imperial0.5"
Probe Length - Metric12.7mm
Probe Diameter - Imperial0.125"
Probe Diameter - Metric3.18mm
InsulationFiberglass
Thermocouple TerminationWire Leaded
Thermocouple Wire Standard-
Thermocouple ShieldingShielded
Product RangeTC-K-NPT Series
SVHCNo SVHC (17-Jan-2022)
Product Overview

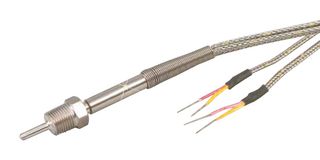

TC-K-1/8NPT-U-72 is a TC-K-NPT series, Type K, ungrounded pipe plug thermocouple probe with 1/8NPT fitting and stripped wire leads.
- Rugged 304 SS design with strain relief spring
- 2m (80") stainless steel braid over fiberglass lead wire
- Withstands pressures to 2500psi at ambient temperatures
- 72" long extension leads
- Ungrounded junction is ideal for vessel application, pressurized chambers and pipelines
- Exposed junction designed for air temperature measurement and monitoring of gas streams
- Probe temperature range to 650°C
- Transition joint/cable temperature range to 480°C
Technical Specifications
Thermocouple Type
K
Measured Temperature Max
650°C
Lead Length - Imperial
72"
Probe Length - Imperial
0.5"
Probe Diameter - Imperial
0.125"
Insulation
Fiberglass
Thermocouple Wire Standard
-
Product Range
TC-K-NPT Series
Measured Temperature Min
0°C
Sensor Body Material
Stainless Steel
Lead Length - Metric
1.83m
Probe Length - Metric
12.7mm
Probe Diameter - Metric
3.18mm
Thermocouple Termination
Wire Leaded
Thermocouple Shielding
Shielded
SVHC
No SVHC (17-Jan-2022)
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (17-Jan-2022)
