                      WT4401-D

                      Calibrator, Barometric, Humidity, Pressure, Temperature, 3.5 ", 5.53 ", 7.25 ", 0.01, 22.5 kg

                      OMEGA WT4401-D

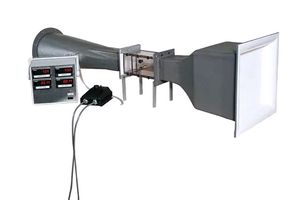

                      Image is for illustrative purposes only. Please refer to product description.
                      ManufacturerOMEGA
                      Manufacturer Part NoWT4401-D
                      Newark Part No.03Y0178
                      Technical Datasheet

                      Data Sheet

                      See all Technical Docs
                      Available to Order
                      Delivery estimated post order confirmations.You will be charged on despatch.
                      QuantityPrice
                      1+$38,415.890
                      Price for:Each
                      Minimum: 1
                      Multiple: 1
                      $38,415.89
                      Enter Your Part No/Line Note
                      Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
                      This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.

                      Product Information

                      ManufacturerOMEGA
                      Manufacturer Part NoWT4401-D
                      Newark Part No.03Y0178
                      Technical Datasheet

                      Data Sheet

                      Calibration TypeBarometric, Humidity, Pressure, Temperature
                      External Height3.5"
                      External Width5.53"
                      External Depth7.25"
                      Accuracy0.01
                      Weight22.5kg
                      Operating Temperature Min-
                      Operating Temperature Max-
                      Product Range-
                      SVHCNo SVHC (17-Jan-2022)

                      Product Overview

                      WT4401-D is a laboratory grade benchtop wind tunnel designed to give a highly uniform flow rate over a 6" test section. A powerful 12A motor with variable speed from 0 to 10,000RPM is adjustable to give a particular flowrate by a precise motor control unit. Each wind tunnel is supplied with an NIST traceable certificate. The uniform flowrate is determined by monitoring a highly repeatable differential pressure sensor which has been calibrated to each individual wind tunnel as a system. Each wind tunnel is supplied with two restrictive plates for achieving optimum low flowrates. The established differential pressure measurements versus flowrates are listed from 25 to 9000FPM. Calibration sheets are included, which makes calibrating different flow sensors simple. The differential pressure measurement used to establish known flowrates will be affected by barometric pressure and temperature conditions during testing. Depending on the probe being calibrated, humidity may also be a factor.

                      • Precise motor control for adjusting flowrates
                      • Highly accurate to 1% of reading
                      • Large 101.6 x 101.6mm (4 x 4") test chamber
                      • Highly stable delta pressure sensor and readout included with each wind tunnel
                      • Fully instrumented
                      • Optional environmental monitoring package of temp, humidity, barometric pressure & delta P available

                      Contents

                      Wind tunnel, Deluxe electronics box, Two restrictive plates, Motor controller, Two 0.6 m (5') lengths of silicone tubing, One package of brass compression fittings with PTF ferrules (sizes 1⁄8, 3⁄16, 1⁄4, and 3⁄8"), six calibration report sheets (3 in metric units, 3 in English units), Complete operator’s manuals for: DP41-S indicator; motor; controller and wind tunnel, Operator’s manuals for all included instrumentation and sensors, Calibration sheet for the barometer.

                      Technical Specifications

                      Calibration Type

                      Barometric, Humidity, Pressure, Temperature

                      External Width

                      5.53"

                      Accuracy

                      0.01

                      Operating Temperature Min

                      -

                      Product Range

                      -

                      External Height

                      3.5"

                      External Depth

                      7.25"

                      Weight

                      22.5kg

                      Operating Temperature Max

                      -

                      SVHC

                      No SVHC (17-Jan-2022)

                      Technical Docs (2)

                      User Manual EN

                      Technical Data Sheet EN

                      Legislation and Environmental

                      US ECCN:EAR99
                      EU ECCN:Unknown
                      RoHS Compliant:No
                      RoHS Phthalates Compliant:No
                      SVHC:No SVHC (17-Jan-2022)
