45-564-223

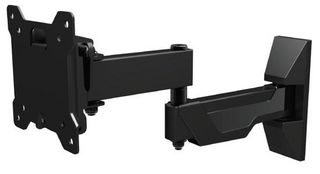

Dual Arm Full Motion Mount Fits 13~37" TV OC40FMX

OMNIMOUNT 45-564-223
OMNIMOUNT 45-564-223

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
OMNIMOUNT OMNIMOUNT
Manufacturer Part No:
45-564-223
Newark Part No.:
29X0279
Technical Datasheet:
45-564-223   Datasheet
See all Technical Docs

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
13" to 37"

:
Wall Shelf

:
18.1kg

:
75 x 75 to 200 x 200

:
-

Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (2)

Product Overview

Dual Arm Full Motion Mount Take the guesswork out of choosing your perfect mount! The OC40FMX is a dual-arm full motion mount that is compatible with most TV's up to 37" on the market today.
  • Tilt, pan and swivel for maximum viewing flexibility
  • Lift n' Lock allows you to easily attach your TV to the mount
  • Extends 13.7" (349mm) from wall when in use and retracts to 3.0" (76mm) when not in use
  • Integrated cable management and plastic covers hide wires
  • Allows for simple leveling adjustments post-installation
  • Durable powder coat finish
  • Two-tone design and modern aesthetic complement newer TVs
  • Includes adapters for greater VESA compatibility
  • Simple to install and use
  • Ships fully assembled
  • Includes complete hardware kit
  • Fits most: 13-37" TV's
  • Supports up to: 40 lbs (18.1 kg)
  • Tilt: +15º to -5º
  • Pan: ± 90º
  • Mounting profile: 3.0" (76mm)*
  • Maximum extension: 13.7" (349mm)*
  • *adapters add .2" (6mm)
  • VESA compliant: 75wx75h to 200wx200h
  • Mounting: Single-stud or solid wall
  • Warranty: 5 years
  • Color: Black
