Print Page
TL-W5MC1
Inductive Proximity Sensor, TL-W Series, Flat, 5mm, NPN, 10 V to 30 V

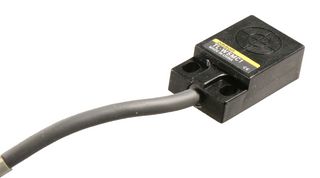

Image is for illustrative purposes only. Please refer to product description.
ManufacturerOMRON INDUSTRIAL AUTOMATION
Manufacturer Part NoTL-W5MC1
Newark Part No.27M2898
Technical Datasheet
10 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $138.380 |
| 5+ | $133.570 |
| 10+ | $131.160 |
| 25+ | $128.760 |
| 50+ | $126.370 |
| 100+ | $123.960 |
Price for:Each
Minimum: 1
Multiple: 1
$138.38
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerOMRON INDUSTRIAL AUTOMATION
Manufacturer Part NoTL-W5MC1
Newark Part No.27M2898
Technical Datasheet
Sensor TypeInductive Proximity Sensor
Operating Temperature Max70°C
Sensing Distance Min-
Sensing Distance Max-
Sensing Distance Nom5mm
Supply Voltage Min10VDC
Supply Voltage Max30VDC
Sensor Output Type3-Wire, NPN, NO
Sensor Case / PackageModule
Sensor TerminalsCable
Sensor Body MaterialABS (Acrylonitrile Butadiene Styrene)
IP RatingIP67
Operating Temperature Min-25°C
Product Range-
SVHCTo Be Advised
Product Overview
The TL-W5MC1 is a flat inductive Proximity Sensor with DC 3-wire NPN normally open output. It is used for detecting ferrous metal. It provides surge suppress and load short-circuit protection. The body is made of ABS plastic. It features rugged directly onto metal or low profile plastic housing. It is ready to use prewired with 2m length cable and mounting bracket included with TL-W3M sensors.
- Unshielded
- IP67 Protection rating (IEC60529)
Applications
Sensing & Instrumentation
Technical Specifications
Sensor Type
Inductive Proximity Sensor
Sensing Distance Min
-
Sensing Distance Nom
5mm
Supply Voltage Max
30VDC
Sensor Case / Package
Module
Sensor Body Material
ABS (Acrylonitrile Butadiene Styrene)
Operating Temperature Min
-25°C
SVHC
To Be Advised
Operating Temperature Max
70°C
Sensing Distance Max
-
Supply Voltage Min
10VDC
Sensor Output Type
3-Wire, NPN, NO
Sensor Terminals
Cable
IP Rating
IP67
Product Range
-
