A22EL-M-24A-11
Emergency Stop Switch, SPST-NC, SPST-NO, Momentary Spring Return, Screw, 8 mA, 24 V, 24 V

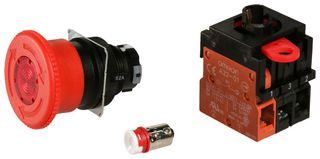

Image is for illustrative purposes only. Please refer to product description.
164 In Stock
Delivery in 2-3 Business days(Supplier Direct Ship)
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $153.880 |
Price for:Each
Minimum: 1
Multiple: 1
$153.88
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerOMRON STI
Manufacturer Part NoA22EL-M-24A-11
Newark Part No.08R7300
Technical Datasheet
Contact ConfigurationSPST-NC, SPST-NO
Switch OperationMomentary Spring Return
Switch TerminalsScrew
Contact Current Max8mA
Contact Voltage AC Nom24V
Contact Voltage DC Nom24V
Pushbutton Actuator StyleRound
IP RatingIP65
Product Range-
SVHCNo SVHC (27-Jun-2018)
Product Overview
The A22EL-M-24A-11 is a SPST Emergency Stop Switch with 40mm medium push-lock turn-reset head. It has LED light source.
- Direct opening mechanism to open the circuit when the contact welds
- IP65 Protection rating
- Class II electric shock protection
- 100MΩ Minimum at 500VDC insulation resistance
- -20 to 55°C Ambient operating temperature range
Applications
Industrial
Technical Specifications
Contact Configuration
SPST-NC, SPST-NO
Switch Terminals
Screw
Contact Voltage AC Nom
24V
Pushbutton Actuator Style
Round
Product Range
-
Switch Operation
Momentary Spring Return
Contact Current Max
8mA
Contact Voltage DC Nom
24V
IP Rating
IP65
SVHC
No SVHC (27-Jun-2018)
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (27-Jun-2018)
