FSD75-8-D
Wire Ferrule, DIN End, Single Wire, 20 AWG, 0.5 mm², 8 mm, White, FSD Series

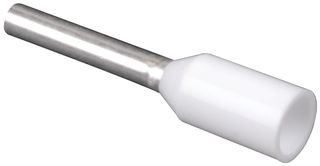

Image is for illustrative purposes only. Please refer to product description.
ManufacturerPANDUIT
Manufacturer Part NoFSD75-8-D
Newark Part No.14AC1980
Product RangeFSD Series
Also Known AsGTIN UPC EAN: 07498376245
Technical Datasheet
35,006 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $0.427 |
| 10+ | $0.420 |
| 25+ | $0.410 |
| 50+ | $0.402 |
| 100+ | $0.391 |
| 500+ | $0.381 |
| 1000+ | $0.362 |
Price for:Each
Minimum: 1
Multiple: 1
$0.43
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerPANDUIT
Manufacturer Part NoFSD75-8-D
Newark Part No.14AC1980
Product RangeFSD Series
Also Known AsGTIN UPC EAN: 07498376245
Technical Datasheet
Wire Ferrule TypeSingle Wire
Wire Size AWG Max20AWG
Conductor Area CSA0.5mm²
Pin Length8mm
Insulator ColourWhite
Product RangeFSD Series
Overall Length13.5mm
Insulator MaterialPP (Polypropylene)
Terminal MaterialCopper
Terminal PlatingTin
SVHCNo SVHC (21-Jan-2025)
Product Overview
FSD75-8-D is a Pan-Term® single wire standard ferrule with an end sleeve. It simplifies reliable connections with our single-wire ferrule with end sleeve for stranded wires in terminal blocks, meeting industry standards for various applications. It meets DIN, UL and CSA standards for single wire containment. It is designed with a seamless barrel to contain loose wire strands for superior terminations. It is suitable for limited space panel applications. It is for used with CT-1002, CT-1003, CT-1090, CT-1123, CT-1160, CT-1170, CP-991, CTFP-25, CTFP-40, CT-2300/ST (CD-090), CT-2500/L (CT-2523CH).
- 22-20AWG copper conductor size
- 15/32inch wire strip length
- 11.9mm wire strip length
- Polypropylene cover material
- 0.5mm² maximum metric conductor size
- Funnel entry for faster insertion and lower installed cost
- Tin-plated finish/coating
- White color
- 0.53inch overall length
- Operating Temperature range from -54 to 105°C
Technical Specifications
Wire Ferrule Type
Single Wire
Conductor Area CSA
0.5mm²
Insulator Colour
White
Overall Length
13.5mm
Terminal Material
Copper
SVHC
No SVHC (21-Jan-2025)
Wire Size AWG Max
20AWG
Pin Length
8mm
Product Range
FSD Series
Insulator Material
PP (Polypropylene)
Terminal Plating
Tin
Technical Docs (2)
Alternatives for FSD75-8-D
1 Product Found
Associated Products
2 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
