FSD85-16-L

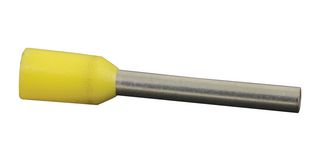

Wire Ferrule, Single Wire, 4 AWG, 25 mm², 16 mm, Yellow, FSD Series
Image is for illustrative purposes only. Please refer to product description.
ManufacturerPANDUIT
Manufacturer Part NoFSD85-16-L
Newark Part No.48AC9854
Product RangeFSD Series
Also Known AsGTIN UPC EAN: 07498376271
Technical Datasheet
168 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $1.850 |
| 10+ | $1.810 |
| 25+ | $1.770 |
| 50+ | $1.730 |
| 100+ | $1.630 |
| 500+ | $1.590 |
| 1000+ | $1.460 |
Price for:Each
Minimum: 1
Multiple: 1
$1.85
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerPANDUIT
Manufacturer Part NoFSD85-16-L
Newark Part No.48AC9854
Product RangeFSD Series
Also Known AsGTIN UPC EAN: 07498376271
Technical Datasheet
Wire Ferrule TypeSingle Wire
Wire Size AWG Max4AWG
Conductor Area CSA25mm²
Pin Length16mm
Insulator ColourYellow
Product RangeFSD Series
Overall Length29mm
Insulator MaterialPP (Polypropylene)
Terminal MaterialCopper
Terminal PlatingTin
SVHCNo SVHC (21-Jan-2025)
Product Overview
The FSD85-16-L from Panduit is a single wire, DIN end sleeve insulated ferrule. It has a funnel entry for faster insertion and lower installation cost. It is intended for #4AWG (25mm²) wire ferrules and supports a maximum wire insulated diameter of 0.43" (11mm). The insulated ferrule is 1.14" (29mm) long and has a wire strip length of 0.750" (19.1mm). Eases insertion of wire into terminal block and suitable for limited space panel applications.
- Yellow colour polypropylene insulation
- Copper base material, tinned plating
- Meets UL 486F, CSA-C22.2 No. 291-14 and DIN 46228 standards
- Designed with a seamless barrel to contain loose wire strands for superior terminations
- Pin length is 0.63"(16mm)
