PHNTRAYNOH
Development Board, Photon, P-zero Module, IoT, WiFi Development, No Pin Headers

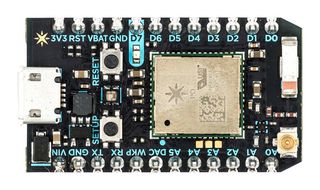

Image is for illustrative purposes only. Please refer to product description.
Available to Order
Delivery estimated post order confirmations.You will be charged on despatch.
| Quantity | Price |
|---|---|
| 1+ | $1,995.210 |
Price for:Each
Minimum: 1
Multiple: 1
$1,995.21
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerPARTICLE
Manufacturer Part NoPHNTRAYNOH
Newark Part No.62AC5484
Technical Datasheet
Kit Application TypeWireless Connectivity
Silicon ManufacturerUSI
Silicon Core NumberWM-N-BM-09-S
Application Sub TypeInternet of Things (IoT)
Kit ContentsDevelopment Board WM-N-BM-09-S
Product Range-
SVHCNo SVHC (15-Jan-2018)
Product Overview
Internet of Things hardware development kit provides everything user needs to build a connected product. Particle combines a powerful ARM Cortex M3 micro-controller with a Broadcom Wi-Fi chip in a tiny thumbnail-sized module called the PØ (P-zero). Particle adds a rock solid 3.3VDC SMPS power supply, RF and user interface components to the PØ on a small single-sided PCB called the Photon. The design is open source so when you're ready to integrate the Photon into your product, you can.
- PØ Wi-Fi module (802.11b/g/n Wi-Fi, 1MB flash, 128KB RAM)
- On-board RGB status LED (ext. drive provided)
- 18 mixed-signal GPIO and advanced peripherals
- Open source design
- Real-time operating system (FreeRTOS)
- Soft AP setup
- Power to photon is supplied via on-board USB Micro B connector or directly via VIN pin
- Supplied without headers
Technical Specifications
Kit Application Type
Wireless Connectivity
Silicon Core Number
WM-N-BM-09-S
Kit Contents
Development Board WM-N-BM-09-S
SVHC
No SVHC (15-Jan-2018)
Silicon Manufacturer
USI
Application Sub Type
Internet of Things (IoT)
Product Range
-
Technical Docs (1)
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:To be advised
SVHC:No SVHC (15-Jan-2018)
