2202552

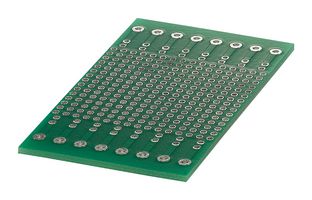

PC Board, Glass Epoxy, FR4, Green, EH 45 Flat Development Kit
Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 13 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | $18.120 |
| 10+ | $17.450 |
| 50+ | $16.420 |
| 100+ | $15.180 |
| 250+ | $14.180 |
| 500+ | $13.470 |
| 1000+ | $12.740 |
Price for:Each
Minimum: 1
Multiple: 1
$18.12
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerPHOENIX CONTACT
Manufacturer Part No2202552
Newark Part No.52Y1247
Technical Datasheet
Board TypeBreadboard / Solderless
Board Material-
Hole Diameter-
External Height-
External Width-
Board Thickness-
SVHCNo SVHC (21-Jan-2025)
Product Overview
PCB - EH 45F/16 DEV-PCB is a perfboard for the EH 45 FLAT DEV-KIT for MKDS-5,08 terminal blocks suitable for manual soldering.
- Hole matrix PCB for self-assembly
- Hole matrix dimension 2.54mm
- Easy installation
- FR 4-21 housing material
- Ambient temperature (operation) is 110°C
Contents
DEV-KIT EH 45 FLAT contains 1 x EH 45 FLAT housing and PCB terminal blocks (MKDS ... 5,08), supplied in individual parts.
Technical Specifications
Board Type
Breadboard / Solderless
Hole Diameter
-
External Width
-
SVHC
No SVHC (21-Jan-2025)
Board Material
-
External Height
-
Board Thickness
-
Technical Docs (3)
Associated Products
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
