UT 4-MT
DIN Rail Mount Terminal Block, Knife Disconnect, 2 Positions, 26 AWG, 10 AWG, 2.5 mm², Screw, 16 A

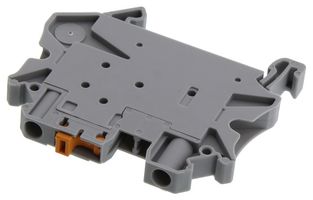

Image is for illustrative purposes only. Please refer to product description.
ManufacturerPHOENIX CONTACT
Manufacturer Part NoUT 4-MT
Newark Part No.74T0189
Product RangeUT
Also Known As3046139, GTIN UPC EAN: 4017918975562
Technical Datasheet
1,077 In Stock
Need more?
501 Delivery in 1-3 Business Days(US stock)
576 Delivery in 2-4 Business Days(UK stock)
Order before 9pm
| Quantity | Price |
|---|---|
| 1+ | $7.800 |
| 10+ | $7.340 |
| 50+ | $6.930 |
| 100+ | $6.720 |
| 250+ | $6.330 |
| 500+ | $5.940 |
| 1000+ | $5.540 |
Price for:Each
Minimum: 1
Multiple: 1
$7.80
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerPHOENIX CONTACT
Manufacturer Part NoUT 4-MT
Newark Part No.74T0189
Product RangeUT
Also Known As3046139, GTIN UPC EAN: 4017918975562
Technical Datasheet
No. of Positions2Positions
Wire Size AWG Min26AWG
Wire Size AWG Max10AWG
Conductor Area CSA2.5mm²
Wire Connection MethodScrew
Rated Current16A
Rated Voltage600V
No. of Levels1
Product RangeUT
SVHCLead (21-Jan-2025)
Product Overview
The UT 4-MT is a 2-connection DIN rail knife disconnect Terminal Block with PA (polyamide) insulator, grey color. 0.14 to 6mm² cross-section and 26 to 10AWG wire size, screw connection method, nein open side panel and NS 35/7, 5, NS 35/15 assembly.
- UL94V-0 Flammability rating
- 8kV Rated surge voltage
- Compact design
Applications
Industrial
Technical Specifications
No. of Positions
2Positions
Wire Size AWG Max
10AWG
Wire Connection Method
Screw
Rated Voltage
600V
Product Range
UT
Wire Size AWG Min
26AWG
Conductor Area CSA
2.5mm²
Rated Current
16A
No. of Levels
1
SVHC
Lead (21-Jan-2025)
Technical Docs (3)
Associated Products
2 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
