PICOSCOPE 3416E

PICOSCOPE 3416E is a PicoScope 3000E series USB-powered PC oscilloscope. PicoScope 3000E oscilloscope provides high-performance specifications ideal for engineers working on advanced electronics and diverse embedded system technologies, either in the laboratory or on the move. The advanced PicoScope 7 software (Windows, Mac or Linux) is easy to use while offering high-end features including 40 serial decoders, mask limit testing and an array of advanced measurements and math's functions. A software development kit (PicoSDK) is also available for customers wanting to write their own software or use 3rd party applications such as LabVIEW and MATLAB.

• 200MHz bandwidth, 4 analog digital channel oscilloscope
• 1.75ns rise time, 10-bit vertical resolution
• 2GS ultra-deep capture memory(8-bit mode)
• Function/arbitrary waveform generator included
• Over 40 serial protocol decoders included as standard
• Segmented memory, persistence and fast waveform updates
• SuperSpeed USB 3.0 interface
• Powered from single USB type-C 3A port or from USB port plus external type-C PSU (5V, 3A)
• Dimension is 221 x 173 x 30mm
• 5 year warranty

Contents

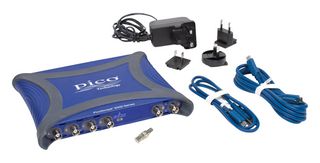

PicoScope 3000E series oscilloscope, TA532 USB-C to USB-C cable(1.8m length), TA534 USB-A to USB-C cable(0.9m length), PS017 USB-C power supply, with UK, EU, US and AUS plug tops, Probe-to-BNC adaptor (5mm adaptor), TA386(200MHz, 1:1/10:1) probe, User's Guide.
