PICOSCOPE 4262

PC USB Oscilloscope, PicoScope 4000 Series, 2 Channel, 5 MHz, 10 MSPS, 16 Mpts, 70 ns

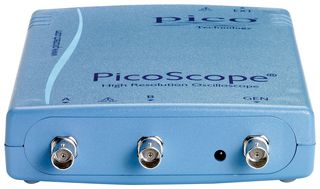

PICO TECHNOLOGY PICOSCOPE 4262
×
×

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
PICOSCOPE 4262
Newark Part No.:
63T6404
Product Range
PicoScope 4000 Series
Also Known As:
PP799
Technical Datasheet:
PICOSCOPE 4262   Datasheet
See all Technical Docs

Product Range Selector (PicoScope 4000 Series)

See all from this product range

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
PicoScope 4000 Series

:
2 Channel

:
5MHz

:
10MSPS

:
16 Mpts

:
70ns

:
PicoScope 4262, TA375 One 100 MHz Passive Probe Per Channel 1:1, 10:1 Switchable, BNC, MI106 USB2 Cable, 1.8m, Quick Start Guide

:
5 Years

:
USB

Find similar products Choose and modify the attributes above to find similar products.

Technical Documents (3)

CAD Downloads

×

Terms and Conditions

CAD Models - Notice
CAD Models and drawings are provided to you on a revocable limited licence for your internal use only but remain the property of the manufacturer who retain all intellectual property rights and ownership. They are provided to assist you in decision making and as design guide but are not guaranteed to be error free, accurate or up to date and is not intended to be taken as advice.
Use of these CAD models and other options provided are downloaded and used entirely at your own risk and by continuing you confirm acceptance of the above.

Accept Cancel

Product Overview

The PICOSCOPE 4262 from Pico Technology is a PicoScope 4000 series high resolution PC based oscilloscope with 2 channels. With its 5MHz bandwidth, it can easily analyze audio, ultrasonic and vibration signals, characterize noise in SMPS, measure distortion and perform a wide range of precision measurement tasks. The PicoScope 4262 is a full-featured oscilloscope with a function generator and 16bit, 192KS/s arbitrary waveform generator that includes a sweep function to enable frequency response analysis. It also offers mask limit testing, math and reference channels, advanced digital triggering, serial decoding, automatic measurements and colour persistence display. When used in spectrum analyzer mode, it provides a menu of 11 automatic frequency-domain measurements such as IMD, THD, SFDR and SNR. Digital triggering reduces trigger errors and allows oscilloscope to trigger on smallest signals even at the full bandwidth.
  • Rise time is 70ns, input sensitivity is 2mV/div to 4V/div, 10MS/s sampling, buffer memory is 16ms
  • Front panel has 2 BNC input channels and a BNC output for function generator and AWG
  • Rear panel has a USB port for connection to PC and a BNC for an external trigger to be connected
  • Advanced digital triggers including pulse width, windowed and dropout triggers
  • I²C, I²S, CAN bus, SPI, RS232/UART, LIN serial protocols
  • low noise of 8.5µV RMS, low distortion of 96dB SFDR
  • USB2.0 for PC connectivity, powered from USB port
  • Software compatible with Microsoft Windows 7, Windows 8 or Windows 10, 32bit or 64bit
  • 210mm x 135mm x 40mm size, 500g weight, 0°C to 45°C operating temperature, EN61010-1 safety approval

Applications

Test & Measurement

Contents

PicoScope 4262, TA375 One 100 MHz Passive Probe Per Channel 1:1, 10:1 Switchable, BNC, MI106 USB2 Cable, 1.8m, Quick Start Guide

Footnotes

Software and user manuals are available from: https://www.picotech.com/downloads.

Also Known As

PP799
