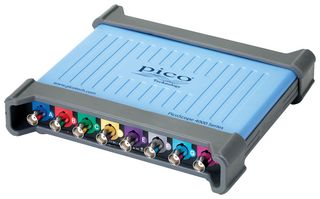

PICOSCOPE 4824A

PICOSCOPE 4824A is a PicoScope® 4000A Series PC oscilloscope. It is a second-generation upgrade and expansion of our high-resolution, deep-memory product portfolio. The PicoScope 4000A Series boasts 12-bit hardware resolution (to 16 bits with Resolution Enhancement), 256MS deep capture memory, 20MHz bandwidth with 80MS/s sampling speed, up to 70dB SFDR and a built-in 14-bit triggerable signal generator and 80MS/s AWG. A SuperSpeed USB 3.0 interface powers the instrument and delivers up to 160MS/s communications to the host PC. All models run with the popular PicoScope 6 user interface and benefit from the free PicoSDK software development kit, which gives users direct programming control of the hardware for custom applications. The scopes also work with PicoLog 6 data logging software for lower-speed long-duration captures.

• 10000 segment waveform buffer
• 14-bit resolution AWG
• Low-cost and portable
• SuperSpeed USB 3.0 interface
• Split-screen waveform viewing
• Up to 70dB SFDR
• Advanced digital triggering
• Serial bus decoding
• PicoScope, PicoLog and PicoSDK® software included
• Dimension is 7.48inch x 6.69inch x 1.57inch including connectors

Contents

PicoScope 4000A Series 8-channel oscilloscope, Oscilloscope probes, USB 3.0 cable 1.8m, Quick start guide, Carry case.
