                      PICOSCOPE 9404-05

                      PC USB Oscilloscope, PicoScope 9400 Series, 4 Channel, 5 GHz, 500 MSPS, 70 ps

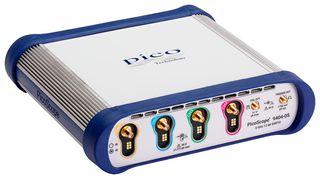

                      PICO TECHNOLOGY PICOSCOPE 9404-05
                      Image is for illustrative purposes only. Please refer to product description.
                      ManufacturerPICO TECHNOLOGY
                      Manufacturer Part NoPICOSCOPE 9404-05
                      Newark Part No.07AH6925
                      Product RangePicoScope 9400 Series
                      Technical Datasheet

                      Data Sheet

                      See all Technical Docs
                      Available to Order
                      Manufacturer Standard Lead Time: 13 week(s)
                      QuantityPrice
                      1+$24,720.530
                      Price for:Each
                      Minimum: 1
                      Multiple: 1
                      $24,720.53
                      Enter Your Part No/Line Note
                      Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
                      This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.

                      Product Information

                      ManufacturerPICO TECHNOLOGY
                      Manufacturer Part NoPICOSCOPE 9404-05
                      Newark Part No.07AH6925
                      Product RangePicoScope 9400 Series
                      Technical Datasheet

                      Data Sheet

                      Product RangePicoScope 9400 Series
                      Scope Channels4 Channel
                      Bandwidth5GHz
                      Sampling Rate500MSPS
                      Display Memory Depth-
                      Calculated Rise Time70ps
                      Kit Contents9404-05 OSC, PicoSample 4S/W, IEC Mains Leads, USB/LAN Cable, SMA/PC3.5/2.92 Wrench, Supply/Case/QSG
                      Manufacturer Warranty5 Years
                      Plug Type-
                      SVHCNo SVHC (21-Jan-2025)

                      Product Overview

                      PicoScope 9404-05 has four high-bandwidth (5GHz) 50 ohm input channels, each with its own advanced 12-bit ADC that provide timing and display resolutions for accurately measuring and visualizing high-speed repetitive analogue and data signals. This tool is valuable for capturing pulse and step transitions to 70ps, impulses down to 140ps, and clocks and data eyes to 3Gb/s.

                      • 5GHz bandwidth, 70ps transition time
                      • 1TS/s (1ps) equivalent-time sampling
                      • Four 12-bit 500MS/s ADCs
                      • Up to 2 million triggered captures per second
                      • Pulse, eye and mask testing to 70ps and 3Gb/s
                      • Logical, intuitive and configurable touch-compatible Windows user interface
                      • Comprehensive built-in measurements, zooms, data masks and histograms
                      • ±800 mV full-scale input range into 50 ohms
                      • ±10mV/div to ±0.25V/div ranges provided by digital gain
                      • Up to 250Ks trace length, shared between channel

                      Contents

                      PicoScope 9400 series sampler-extended real-time oscilloscope (SXRTO), PicoSample 4 software (supplied on a USB stick and also available as a free download from www.picotech.com), Quick start guide, 12V power supply, universal input, 3 x localized IEC mains leads, USB cable 1.8m, SMA / PC3.5 / 2.92 wrench, Storage / carry case, LAN cable 1m.

                      Technical Specifications

                      Product Range

                      PicoScope 9400 Series

                      Bandwidth

                      5GHz

                      Display Memory Depth

                      -

                      Kit Contents

                      9404-05 OSC, PicoSample 4S/W, IEC Mains Leads, USB/LAN Cable, SMA/PC3.5/2.92 Wrench, Supply/Case/QSG

                      Plug Type

                      -

                      Scope Channels

                      4 Channel

                      Sampling Rate

                      500MSPS

                      Calculated Rise Time

                      70ps

                      Manufacturer Warranty

                      5 Years

                      SVHC

                      No SVHC (21-Jan-2025)

                      Technical Docs (1)

                      Technical Data Sheet EN

                      Associated Products

                      1 Product Found

                      Legislation and Environmental

                      US ECCN:Unknown
                      EU ECCN:Unknown
                      RoHS Compliant:Yes

                      RoHS

                      RoHS Phthalates Compliant:Yes

                      RoHS

                      SVHC:No SVHC (21-Jan-2025)
                      Download Product Compliance Certificate

                      Product Compliance Certificate
