2N4365
SCR Module, 70 A, 800 V

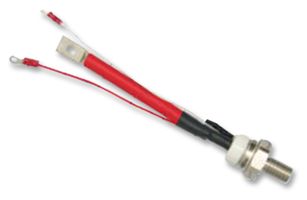

Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 9 week(s)
Product Information
ManufacturerPOWEREX
Manufacturer Part No2N4365
Newark Part No.32H6948
Technical Datasheet
SCR Module TypeSingle SCR
Peak Repetitive Off State Voltage800V
Gate Trigger Current Max250mA
Average On State Current70A
Average Forward Current70A
On State RMS Current110A
Peak Non Repetitive Surge Current1.6kA
Holding Current Max-
Repetitive Peak Reverse Voltage800V
Gate Trigger Voltage Max3V
Repetitive Peak Reverse Voltage800V
Thyristor Case StyleModule
Operating Temperature Max125°C
No. of Pins-
Thyristor MountingStud Mount
Product Range-
SVHCTo Be Advised
Technical Specifications
SCR Module Type
Single SCR
Gate Trigger Current Max
250mA
Average Forward Current
70A
Peak Non Repetitive Surge Current
1.6kA
Repetitive Peak Reverse Voltage
800V
Repetitive Peak Reverse Voltage
800V
Operating Temperature Max
125°C
Thyristor Mounting
Stud Mount
SVHC
To Be Advised
Peak Repetitive Off State Voltage
800V
Average On State Current
70A
On State RMS Current
110A
Holding Current Max
-
Gate Trigger Voltage Max
3V
Thyristor Case Style
Module
No. of Pins
-
Product Range
-
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:No
RoHS Phthalates Compliant:No
SVHC:To Be Advised
