ND431425
Thyristor Diode Module, Series Connected, 250 A, 1.6kV, Module, 7 Pins

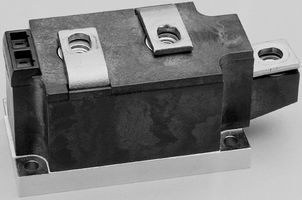

Image is for illustrative purposes only. Please refer to product description.
ManufacturerPOWEREX
Manufacturer Part NoND431425
Newark Part No.73K1975
Product RangeND43x25 Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 10 week(s)
Product Information
ManufacturerPOWEREX
Manufacturer Part NoND431425
Newark Part No.73K1975
Product RangeND43x25 Series
Technical Datasheet
SCR Module TypeSeries Connected - SCRs
Peak Repetitive Off State Voltage1.4kV
Gate Trigger Current Max150mA
Average Forward Current250A
Average On State Current250A
On State RMS Current393A
Peak Non Repetitive Surge Current8.8kA
Gate Trigger Voltage Max3V
Operating Temperature Max130°C
Holding Current Max-
Repetitive Peak Reverse Voltage1.4kV
Repetitive Peak Reverse Voltage1.4kV
Thyristor Case StyleModule
No. of Pins7Pins
Thyristor MountingPanel
Product RangeND43x25 Series
SVHCNo SVHC (17-Jan-2023)
Technical Specifications
SCR Module Type
Series Connected - SCRs
Gate Trigger Current Max
150mA
Average On State Current
250A
Peak Non Repetitive Surge Current
8.8kA
Operating Temperature Max
130°C
Repetitive Peak Reverse Voltage
1.4kV
Thyristor Case Style
Module
Thyristor Mounting
Panel
SVHC
No SVHC (17-Jan-2023)
Peak Repetitive Off State Voltage
1.4kV
Average Forward Current
250A
On State RMS Current
393A
Gate Trigger Voltage Max
3V
Holding Current Max
-
Repetitive Peak Reverse Voltage
1.4kV
No. of Pins
7Pins
Product Range
ND43x25 Series
Technical Docs (2)
Associated Products
2 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (17-Jan-2023)
