RHV3-1212D/R20
Isolated Through Hole DC/DC Converter, ITE & Laboratory, SIP, 1:1, 3 W, 2 Output, 12 V

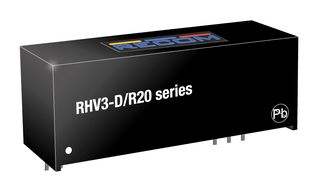

Image is for illustrative purposes only. Please refer to product description.
ManufacturerRECOM POWER
Manufacturer Part NoRHV3-1212D/R20
Newark Part No.51AH5281
Product RangeRHV3 Series
Technical Datasheet
Unable to Retrieve Availability Information
Product Information
ManufacturerRECOM POWER
Manufacturer Part NoRHV3-1212D/R20
Newark Part No.51AH5281
Product RangeRHV3 Series
Technical Datasheet
Power Supply ApplicationsITE & Laboratory
DC / DC Converter TypeSIP
Input Ratio1:1
Output Power Max3W
No. of Outputs2 Output
Output Voltage - Output 112V
Output Current - Output 1125mA
Output Voltage - Output 2-12V
Output Current - Output 2125mA
Output RegulationUnregulated
Product RangeRHV3 Series
Isolation Voltage12.5kV
Input Voltage DC Nom12V
DC / DC Converter Output TypeFixed
Width15mm
Height17mm
DC / DC Converter MountingThrough Hole
Depth45mm
Input Voltage DC Min10.8V
Input Voltage DC Max13.2V
SVHCNo SVHC (21-Jan-2025)
Technical Specifications
Power Supply Applications
ITE & Laboratory
Input Ratio
1:1
No. of Outputs
2 Output
Output Current - Output 1
125mA
Output Current - Output 2
125mA
Product Range
RHV3 Series
Input Voltage DC Nom
12V
Width
15mm
DC / DC Converter Mounting
Through Hole
Input Voltage DC Min
10.8V
SVHC
No SVHC (21-Jan-2025)
DC / DC Converter Type
SIP
Output Power Max
3W
Output Voltage - Output 1
12V
Output Voltage - Output 2
-12V
Output Regulation
Unregulated
Isolation Voltage
12.5kV
DC / DC Converter Output Type
Fixed
Height
17mm
Depth
45mm
Input Voltage DC Max
13.2V
Technical Docs (1)
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
