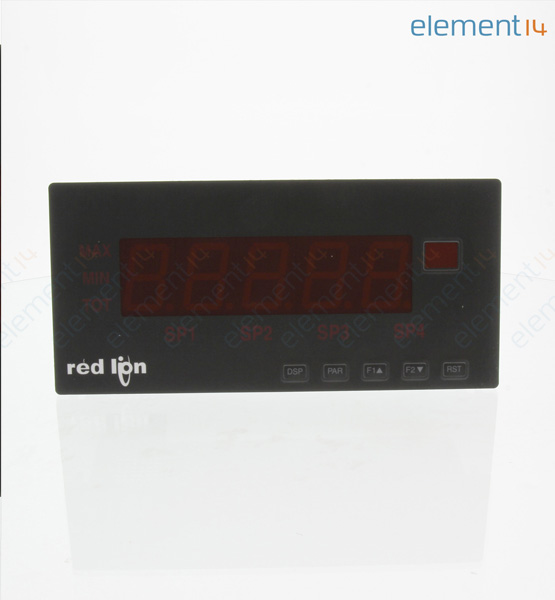

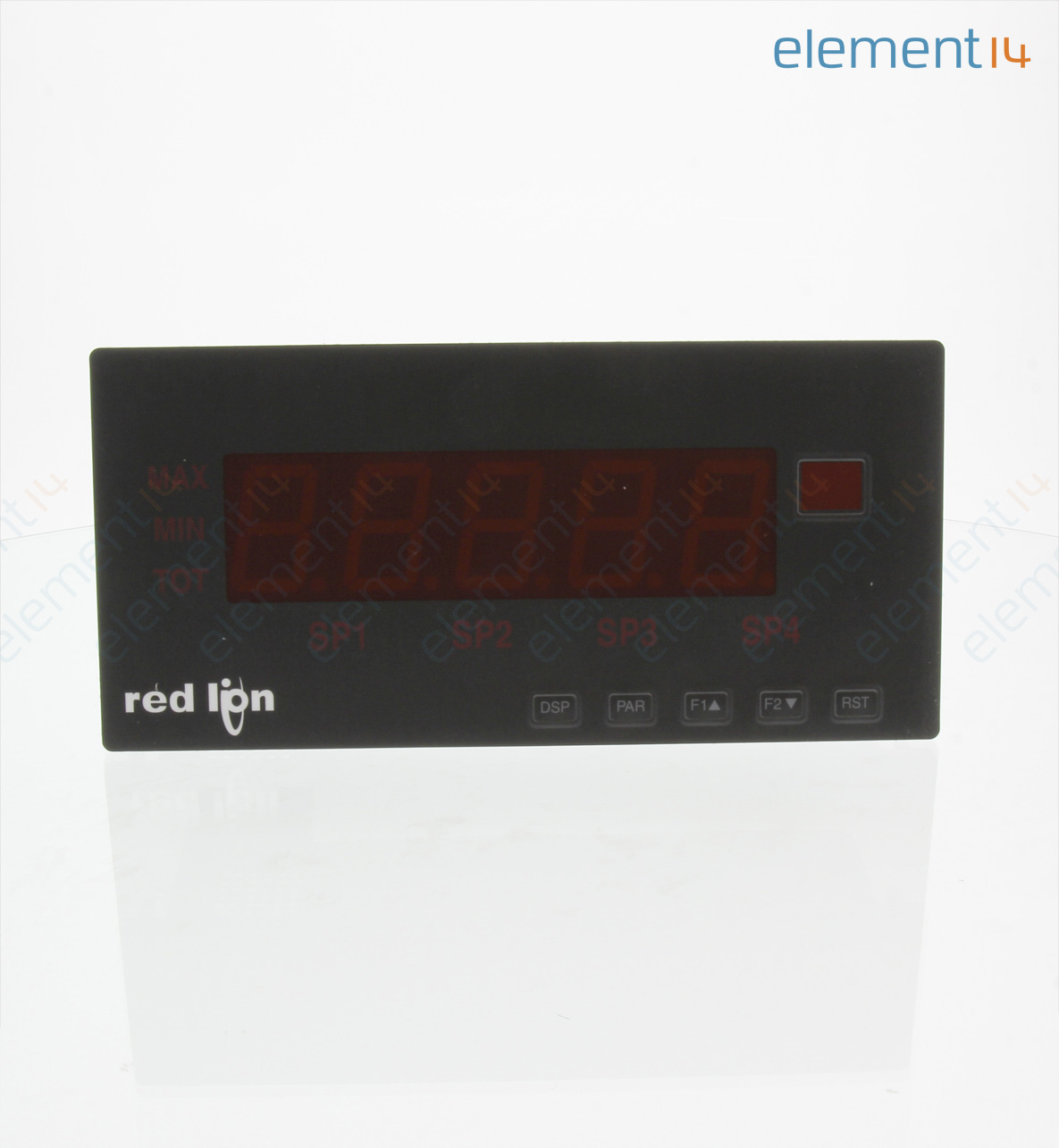

LPAX0500

The LPAX0500 is a 5-digit Large Display suitable for analogue MPAX modules. This display is a versatile display that can increase productivity by offering the plant floor or production area a large visual display of its current status. Whether your measurement is temperature, weight or flow, the LPAX can satisfy the requirement. With the use of units label and backlighting, the display can be tailored to show the actual engineering unit, which further enhances the display. This LPAX display accepts various analogue inputs through the use of input modules (MPAX) which allow the unit to adapt to most any application. Additional plug-in option cards can add alarms, analogue output and communication/bus capabilities, making the LPAX a truly intelligent panel meter.

• Large led display readable to 70ft
• Alarms, analogue output and communication
• Custom units label with backlight
• Programmable user inputs
• Programmable function keys
• Universal AC-to-DC powered model
• Crimson programming software
• IP65/NEMA-4 Protection rating

Applications

Industrial, Clock & Timing

Warnings

The protective conductor terminal is bonded to conductive parts of the equipment for safety purposes and must be connected to an external protective earthing system.
