CUB4V-000
Digital Panel Meter, LCD, 3-1/2 Digits, DC Voltage

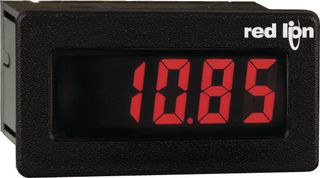

Image is for illustrative purposes only. Please refer to product description.
19 In Stock
18 more incoming. You can reserve stock now
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $282.170 |
Price for:Each
Minimum: 1
Multiple: 1
$282.17
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerRED LION
Manufacturer Part NoCUB4V-000
Newark Part No.17M6444
Technical Datasheet
No. of Digits / Alpha3-1/2
Meter FunctionDC Voltage
Digit Height15.2mm
Panel Cutout Height33.02mm
Panel Cutout Width68.07mm
Supply Voltage Min9VDC
Supply Voltage Max28VDC
Operating Temperature Min0°C
Operating Temperature Max60°C
Product Range-
Product Overview
The CUB4V-000 is a DC Voltmeter with reflective display designed and manufactured using the latest technology for a high quality, compact, affordable instrument. 3-1/2 digit LCD display with 0.6-inch (15.2mm) high digits and a DIP switch selectable decimal point. Constructed of a lightweight, high impact plastic case with a clear viewing window.
- 60°C Operating temperature
- IP65 Protection rating
Applications
Sensing & Instrumentation
Technical Specifications
No. of Digits / Alpha
3-1/2
Meter Range
-199.9mV to +199.9mV / -1.999V to +1.999V / -19.99V to +19.99V / -199.9V to +199.9V
Panel Cutout Height
33.02mm
Supply Voltage Min
9VDC
Operating Temperature Min
0°C
Product Range
-
Meter Function
DC Voltage
Digit Height
15.2mm
Panel Cutout Width
68.07mm
Supply Voltage Max
28VDC
Operating Temperature Max
60°C
SVHC
No SVHC (08-Jul-2021)
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (08-Jul-2021)
