ISL8118CRZ
Power Management IC, PWM Controller, Integrated MOSFET Drivers, 20 V, QFN-28

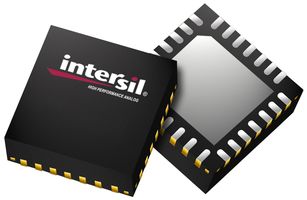

Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 20 week(s)
Product Information
ManufacturerRENESAS
Manufacturer Part NoISL8118CRZ
Newark Part No.05M8232
Technical Datasheet
Power Supply Controller TypeDouble Ended Controller
No. of Channels1Channels
Control ModeVoltage Mode Control
Supply Voltage Min3.3V
Supply Voltage Max20V
IC Case / PackageQFN-EP
No. of Pins28Pins
IC MountingSurface Mount
Switching Frequency Typ-
Switching Frequency Min250kHz
Switching Frequency Max2MHz
Duty Cycle Min0%
Duty Cycle Max100%
TopologyBuck (Step Down)
Operating Temperature Min0°C
Operating Temperature Max70°C
Product Range-
Qualification-
MSL-
SVHCNo SVHC (21-Jan-2025)
Digital IC CaseQFN
