R9A07G066M04GBG#AC0
MICROPROCESSOR, 1GHZ, 16BIT, LFBGA-244 ROHS COMPLIANT: YES

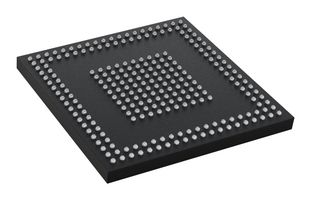

Image is for illustrative purposes only. Please refer to product description.
ManufacturerRENESAS
Manufacturer Part NoR9A07G066M04GBG#AC0
Newark Part No.26AM6574
Product RangeRZ Family RZ/A Series, RZ/A3M Group Microprocessors
Your Part Number
75 In Stock
Need more?
Delivery in 2-4 Business Days(UK stock)
Order before 6pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $29.880 |
| 10+ | $24.040 |
| 25+ | $21.350 |
| 50+ | $21.020 |
| 100+ | $20.690 |
Price for:Each
Minimum: 1
Multiple: 1
$29.88
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerRENESAS
Manufacturer Part NoR9A07G066M04GBG#AC0
Newark Part No.26AM6574
Product RangeRZ Family RZ/A Series, RZ/A3M Group Microprocessors
Technical Datasheet
Product RangeRZ Family RZ/A Series, RZ/A3M Group Microprocessors
No. of CPU Cores1Cores
Program Memory Size-
IC Case / PackageLFBGA
No. of Pins244Pins
Supply Voltage Min2.97V
Supply Voltage Max3.63V
Operating Frequency Max1GHz
InterfacesMIPI DSI, UART, USB 2.0, I2C, SCI, QSPI, SPI, SCI, SDHI
No. of I/O's70I/O's
Data Bus Width16 bit
IC MountingSurface Mount
Operating Temperature Min-40°C
Operating Temperature Max85°C
Qualification-
MPU SeriesRZ/A Series
MPU FamilyRZ
SVHCNo SVHC (25-Jun-2025)
Technical Specifications
Product Range
RZ Family RZ/A Series, RZ/A3M Group Microprocessors
Program Memory Size
-
No. of Pins
244Pins
Supply Voltage Max
3.63V
Interfaces
MIPI DSI, UART, USB 2.0, I2C, SCI, QSPI, SPI, SCI, SDHI
Data Bus Width
16 bit
Operating Temperature Min
-40°C
Qualification
-
MPU Family
RZ
No. of CPU Cores
1Cores
IC Case / Package
LFBGA
Supply Voltage Min
2.97V
Operating Frequency Max
1GHz
No. of I/O's
70I/O's
IC Mounting
Surface Mount
Operating Temperature Max
85°C
MPU Series
RZ/A Series
SVHC
No SVHC (25-Jun-2025)
Technical Docs (1)
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Product traceability
