RTKA223012DR0020BU

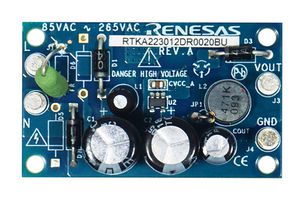

RTKA223012 high voltage buck converter demonstration board is designed to demonstrate a low-cost high performance non-isolated AC/DC conversion from a universal input of 85VAC to 265VAC, to a 5V output with the output current up to 150mA. The board has built-in overcurrent, short-circuit, input brownout, and over-temperature protection. It is designed on a compact PCB with a low-cost half-wave input rectification. It is pre-compliant with conducted and radiated EMI requirements by EN55022/CISPR 22 and the 1.5KV surge test by IEC61000-4-5 standard. It comes with a RAA223012 in SOT-23-5 package. Typical applications home appliances, home automation, IoT, sensors, metering, industry control and bias power.

• Universal input range
• Compact PCB with low-cost external components
• Standby power less than 10mW
• No audible noise, surge test compliance to IEC61000-4-5 up to 1.5KV
• Output current of 150mA max, output power of 0.75W
• Efficiency of <gt/>62.5% at 100% load and 65% at 50% load
• No-load power of <lt/> 10mW at 230VAC
• Load regulation of -3%, load range 10% to 100%
• Operating temperature range from -45°C to 85°C
• Board dimension of 48mm x 29mm
