X9258UV24IZ-2.7
Non Volatile Digital Potentiometer, 50 kohm, Quad, 2 Wire, Serial, Linear, ± 20%, 2.7 V

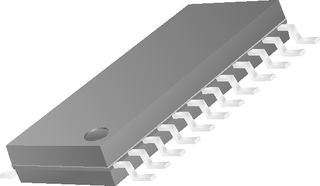

Image is for illustrative purposes only. Please refer to product description.
ManufacturerRENESAS
Manufacturer Part NoX9258UV24IZ-2.7
Newark Part No.06M0716
Product RangeQuad 256-Tap Non-Volatile Digital Pots
Technical Datasheet
Unable to Retrieve Availability Information
Product Information
ManufacturerRENESAS
Manufacturer Part NoX9258UV24IZ-2.7
Newark Part No.06M0716
Product RangeQuad 256-Tap Non-Volatile Digital Pots
Technical Datasheet
End To End Resistance50kohm
No. of PotsQuad
Control Interface2 Wire, Serial
Track TaperLinear
Resistance Tolerance± 20%
Supply Voltage Min2.7V
Supply Voltage Max5.5V
Potentiometer IC Case StyleTSSOP
No. of Pins24Pins
No. of Steps256
Temperature Coefficient± 300ppm/°C
Operating Temperature Min-40°C
Operating Temperature Max85°C
Product RangeQuad 256-Tap Non-Volatile Digital Pots
Automotive Qualification Standard-
MSLMSL 5 - 48 hours
SVHCNo SVHC (21-Jan-2025)
Technical Specifications
End To End Resistance
50kohm
Control Interface
2 Wire, Serial
Resistance Tolerance
± 20%
Supply Voltage Max
5.5V
No. of Pins
24Pins
Temperature Coefficient
± 300ppm/°C
Operating Temperature Max
85°C
Automotive Qualification Standard
-
SVHC
No SVHC (21-Jan-2025)
No. of Pots
Quad
Track Taper
Linear
Supply Voltage Min
2.7V
Potentiometer IC Case Style
TSSOP
No. of Steps
256
Operating Temperature Min
-40°C
Product Range
Quad 256-Tap Non-Volatile Digital Pots
MSL
MSL 5 - 48 hours
Technical Docs (2)
Associated Products
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
