RTM3K-52
Digital Oscilloscope, RTM3000 Series, 2 Channel, 500 MHz, 2.5 GSPS, 40 Mpts, 700 ps

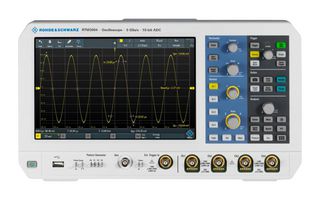

Image is for illustrative purposes only. Please refer to product description.
ManufacturerROHDE & SCHWARZ
Manufacturer Part NoRTM3K-52
Newark Part No.50AC1159
Product RangeRTM3000 Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 2 week(s)
| Quantity | Price |
|---|---|
| 1+ | $17,808.800 |
Price for:Each
Minimum: 1
Multiple: 1
$17,808.80
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerROHDE & SCHWARZ
Manufacturer Part NoRTM3K-52
Newark Part No.50AC1159
Product RangeRTM3000 Series
Technical Datasheet
Product RangeRTM3000 Series
Scope Channels2 Channel
Bandwidth500MHz
Sampling Rate2.5GSPS
Display Memory Depth40 Mpts
Calculated Rise Time700ps
Scope Display TypeWXGA Touch Screen LCD Color
Kit ContentsRTM3002 DSO, RTM-B225 BW Upgrade, RT-ZP05S Passive Probe, Power Cord
Manufacturer Warranty3 Years
Plug Type-
SVHCTo Be Advised
Product Overview
The RTM3K-52 from Rohde & Schwarz is a RTM3000 series, 2 channel digital oscilloscope with RTM-B225 500MHz bandwidth upgrade. It features 10.1" high resolution (1280 x 800 pixels) capacitive touchscreen TFT display with gesture support, 10bit ADC and 40Msample/channel standard, 80Msample interleaved memory depth. The oscilloscope includes a wide range of upgrade options.
- 400Msample segmented acquisition memory (optional)
- Maximum sampling rate of 2.5Gsample/s per channel, 5Gsample/s interleaved
- Waveform update rate is 64000waveforms/s
- Minimum input sensitivity is 500μV/div
- 10second boot time
- I2C, SPI, UART/RS232/ RS422/RS485, CAN, LIN, audio (I²S), ARINC, MIL protocols (optional)
- Arbitrary waveform and 4bit pattern generator optional
- Standard digital voltmeter and trigger counter
- LAN, USB host/device, fast display over Ethernet connectivity
- Oscilloscope size is 390mm x 220mm x 152mm (W x H x D)
Contents
RTM3002 oscilloscope, RTM-B225 bandwidth upgrade, 500MHz passive probe per channel, Power cord.
Technical Specifications
Product Range
RTM3000 Series
Bandwidth
500MHz
Display Memory Depth
40 Mpts
Scope Display Type
WXGA Touch Screen LCD Color
Manufacturer Warranty
3 Years
SVHC
To Be Advised
Scope Channels
2 Channel
Sampling Rate
2.5GSPS
Calculated Rise Time
700ps
Kit Contents
RTM3002 DSO, RTM-B225 BW Upgrade, RT-ZP05S Passive Probe, Power Cord
Plug Type
-
Associated Products
8 Products Found
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:To Be Advised
