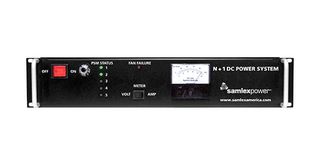

SEC-80BRM

SEC-80BRM is a modular 19” amp rack mount power supply with N+1 and battery back-up. The output DC voltage is highly regulated at 13.8V (105-125V, 50/60Hz AC input). Output power can be expanded in steps of 20 amps (up-to 100A max.). An external battery can be connected for back-up and a section of the output current (up-to 8 amps) is diverted to charge the batteries when in state of discharge using the in-built battery back-up module. The battery supplies the DC load on loss of utility power. Features include N+1 redundancy, front panel analog Volt/Ampere Meter display, remote monitoring and indication by 25-pin D-sub connector, fan failure warning and alarm indication. Ideal for critical power supply applications, telecommunication systems, mobile sound/audio displays, GPS receivers, security systems, CCTV systems.

• 105 to 125VAC 50/60HZ input voltage range, 13.8VAC output voltage, 80A current
• Provides N + 1 redundancy (2 or more running in parallel), voltage/Amperes meter
• Module status LEDs, fault indicator LEDs and fault alarm are standard features on all models
• Highly regulated output voltage
• Short circuit protection and overload current
• 2 year limited warranty
• Dimension is 19 x 16.25 x 3.5inch
