QSE-020-01-L-D-A
Mezzanine Connector, Receptacle, 0.8 mm, 2 Rows, 40 Contacts, Surface Mount, Phosphor Bronze

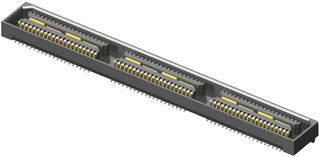

Image is for illustrative purposes only. Please refer to product description.
ManufacturerSAMTEC
Manufacturer Part NoQSE-020-01-L-D-A
Newark Part No.53AJ8285
Product RangeQSE Series
Technical Datasheet
96 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $7.120 |
| 10+ | $6.880 |
| 25+ | $6.630 |
| 50+ | $6.400 |
| 100+ | $6.150 |
| 250+ | $5.790 |
Price for:Each
Minimum: 1
Multiple: 1
$7.12
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerSAMTEC
Manufacturer Part NoQSE-020-01-L-D-A
Newark Part No.53AJ8285
Product RangeQSE Series
Technical Datasheet
Mezzanine Connector TypeReceptacle
Pitch Spacing0.8mm
No. of Rows2Rows
No. of Contacts40Contacts
Connector MountingSurface Mount
Contact MaterialPhosphor Bronze
Contact PlatingGold Plated Contacts
Product RangeQSE Series
SVHCNo SVHC (21-Jan-2025)
Product Overview
QSE-020-01-L-D-A is a QSE series 0.0315" pitch Q Strip® high-speed ground plane socket.
- Up to 200 positions, 5mm - 30mm stack heights
- Extended Life Product™ (E.L.P.™)
- Samtec 28+ Gbps solution, single-ended
- 40 number of contacts
- 10µ" (0.25µm) gold on signal pins and ground plane, matte tin on tails plating
- Liquid crystal polymer insulator, phosphor bronze terminal
- Operating temperature range from -55°C to +125°C
- 225VAC (5mm stack height) voltage rating
