DZ5CE010

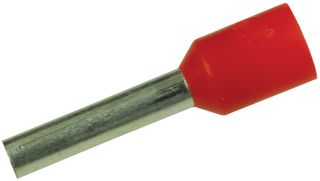

Wire Ferrule, Single Wire, 18 AWG, 1 mm², 8 mm, Red
Image is for illustrative purposes only. Please refer to product description.
5,995 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
Product Information
ManufacturerSCHNEIDER ELECTRIC
Manufacturer Part NoDZ5CE010
Newark Part No.57J5175
Technical Datasheet
Wire Ferrule TypeSingle Wire
Wire Size AWG Max18AWG
Conductor Area CSA1mm²
Pin Length8mm
Insulator ColourRed
Product Range-
Overall Length14mm
Insulator MaterialPlastic
Terminal MaterialCopper
Terminal Plating-
SVHCNo SVHC (07-Jul-2017)
Product Overview
The DZ5CE010 is a Cable End contains a tinned copper ferrule fitted with an insulated sleeve. The copper ferrule holds the core strands of stranded wire and facilitates terminal connections. The insulated plastic sleeve provides protection between adjacent connections. The insulated plastic sleeve provides protection between adjacent connections. Also, the insulated sleeve on some cable end types incorporates an attachment for cable markers.
- Copper ferrule, tin-plated to ISO 1337
- Halogen-free plastic insulated sleeve
- Single conductor type
- 1mm² Cable cross section
- Medium size
Applications
Maintenance & Repair
Technical Specifications
Wire Ferrule Type
Single Wire
Conductor Area CSA
1mm²
Insulator Colour
Red
Overall Length
14mm
Terminal Material
Copper
SVHC
No SVHC (07-Jul-2017)
Wire Size AWG Max
18AWG
Pin Length
8mm
Product Range
-
Insulator Material
Plastic
Terminal Plating
-
